Code : YJV (copper) YJLV (aluminum)
Standard : IEC 60502. GB/T 12706-2002
Construction :
  1- Solid or Stranded Copper Conductor
  2- XLPE insulation (cross-linked PE)
  3- PP Filling
  4- PVC outer sheath
Application :
  Preferably for installation indoors. in cable ducts and in industrial plants or switching
stations. under ground installation with additional protection where mechanical
damage is unexpected.
Technical Data :
  Max. operating temperature 90℃
  Short circuit temperature 250℃
Construction of Cable :

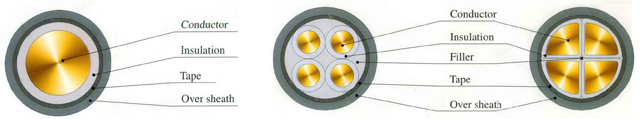

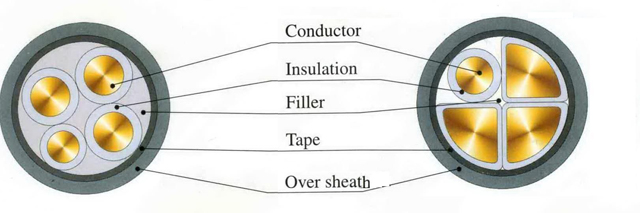

1-core XLPE Insulated PVC Sheathed Power Cable	4-core XLPE Insulated PVC Sheathed Power Cable

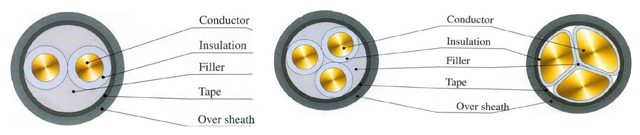

2-core XLPE Insulated PVC Sheathed Power Cable	3-core XLPE Insulated PVC Sheathed Power Cable

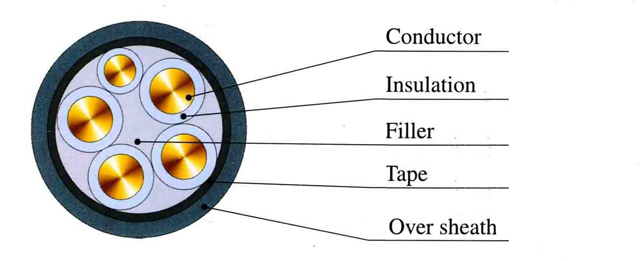

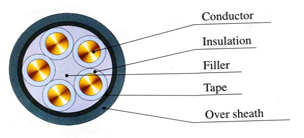

5-core XLPE Insulated PVC Sheathed Power Cable



0.6/1kV Single,2,3-core XLPE Insulated PVC Sheathed Power Cable YJV, YJLV

Normal Cross-section	OD. of Conductor	Normal Thickness of Insulation	Normal Thickness of Sheath	Approx. OD.	Approx. Weight
					kg/km
mm2	mm	mm	mm	mm	CU	AL
1×1.5	1.4	0.7	1.4	5.6	52.4	-
1×2.5	1..8	0.7	1.4	6	65.4	50
1×4	2.2	0.7	1.4	6.4	83.1	58.8
1×6	2.8	0.7	1.4	7	106.7	69.7
1×10	4.1	0.7	1.4	8.3	157.7	94.5
1×16	5.1	0.7	1.4	9.3	221.6	121.5
1×25	6.4	0.9	1.5	11.2	334.7	175.9
1×35	7.6	0.9	1.5	12.4	435.8	215.6
1×50	8.3	1	1.6	13.5	557.8	267.5
1×70	9.8	1.1	1.6	15.2	752.3	342.1
1×95	11.5	1.1	1.7	17.1	1028	447.1
1×120	12.9	1.2	1.7	18.7	1275	539.1
1×150	14.5	1.4	1.7	20.7	1584	658.3
1×185	16	1.6	1.7	22.6	1868	763.5
1×240	18.3	1.7	1.7	25.1	2399	952.7
1×300	20.5	1.8	1.7	27.5	3028	1172
1×400	23.5	2	1.7	30.9	3888	1478
1×500	26.5	2.2	1.8	34.5	4953	1861
1×630	29.5	2.4	1.9	38.5	6164	2299
2×1.5	1.4	0.7	1.8	10	99.6	-
2×2.5	1.8	0.7	1.8	10.8	127.2	95.8
2×4	2.2	0.7	1.8	11.7	164.7	115
2×6	2.8	0.7	1.8	12.7	214.6	139.2
2×10	4.1	0.7	1.8	15.3	324.2	195.9
2×16	5.1	0.7	1.8	17.4	460.9	257.5
2×25	6.4	0.9	1.8	20.8	691.7	369.4
2×35	7.6	0.9	1.8	23.1	907.4	460.5
2×50	8.3	1	1.8	25	1149	559.8
2×70	9.8	1.1	1.8	28.8	1576	743.2
2×95	11.5	1.1	2	32.6	2171	989.3
2×120	12.9	1.2	2.1	36	2713	1219
2×150	14.5	1.4	2.2	40.2	3398	1520
2×185	16	1.6	2.3	44.2	4042	1800
3×1.5	1.4	0.7	1.8	10.4	120.8	-
3×2.5	1.8	0.7	1.8	11.3	158.5	111.4
3×4	2.2	0.7	1.8	12.2	210.4	135.8
3×6	2.8	0.7	1.8	13.4	280.2	167
3×10	4.1	0.7	1.8	16.1	430.7	238.3
3×16	5.1	0.7	1.8	18.4	623..6	318.2
3×25	6.4	0.9	1.8	22.1	947.1	463.7
3×35	7.6	0.9	1.8	24.6	1254	584
3×50	5.6	1	1.8	23.7	1518	677
3×70	6.7	1.1	1.9	27.9	2143	929
3×95	8.1	1.1	2	31.3	2897	1212
3×120	9	1.2	2.1	34.5	3628	1502
3×150	11.7	1.4	2.3	38.8	4496	1873
3×185	12	1.6	2.4	42.6	5576	2293
3×240	15.9	1.7	2.6	47.7	7240	2926
3×300	17.8	1.8	2.8	52.5	9013	3600

0.6/1kV 3+1-core XLPE Insulated PVC Sheathed Power Cable YJV, YJLV

Normal Cross-section	OD. of Conductor	Normal Thickness of Insulation	Normal Thickness of Sheath	Approx. OD.	Approx. Weight
					kg/km
mm2	mm	mm	mm	mm	CU	AL
3×4+1×2.5	2.2	0.7	1.8	12.9	245.4	154.5
	1.8	0.7
3×6+1×4	2.8	0.7	1.8	14.1	329.5	191.2
	2.2	0.7
3×10+1×6	4.1	0.7	1.8	16.8	497.1	267
	2.8	0.7
3×16+1×10	5.1	0.9	1.8	19.4	734.7	365.4
	4.1	0.7
3×25+1×16	6.4	0.9	1.8	23.2	1114	528.6
	5.1	0.7
3×35+1×16	7.6	0.9	1.8	25.2	1414	642.1
	5.1	0.7
3×50+1×25	7.4	1	1.8	26	1807	805.5
	6.4	0.9
3×70+13×50	9.5	1.1	1.9	31.7	2559	1121
	7.6	0.9
3×95+1×50	11.2	1.1	2.1	35.9	3450	1461
	8.9	1
3×120+1×70	12.6	1.2	2.2	39.7	4397	1833
	10.7	1.1
3×150+1×70	13.9	1.4	2.3	43.8	5264	2203
	10.7	1.1
3×185+1×95	15.3	1.6	2.5	48.4	6613	2274
	12.6	1.1
3×240+1×120	17.4	1.7	2.7	53.9	8523	3443
	14.2	1.2
3×300+1×150	19.7	1.8	2.9	59.9	16602	4248
	15.8	1.4

0.6/1kV 4-core XLPE Insulated PVC Sheathed Power Cable YJV, YJLV

Normal Cross-section	OD. of Conductor	Normal Thickness of Insulation	Normal Thickness of Sheath	Approx. OD.	Approx. Weight
					kg/km
mm2	mm	mm	mm	mm	CU	AL
4×1.5	1.4	0.7	1.8	11.1	145.7	-
4×2.5	1.8	0.7	1.8	12.1	194.3	131.5
4×4	2.2	0.7	1.8	13.2	261.6	162.2
4×6	2.8	0.7	1.8	14.5	352.4	201.5
4×10	4.1	0.7	1.8	17.6	547.3	290.7
4×16	5.1	0.7	1.8	20.1	799.1	392.3
4×25	6.4	0.9	1.8	24.3	1222	577.6
4×35	7.6	0.9	1.8	27.1	1626	731.8
4×50	5.6	1	1.8	26.2	2005	884.5
4×70	6.7	1.1	1.9	31.9	2855	1236
4×95	8.1	1.1	2	35.9	3843	1595
4×120	9	1.2	2.1	39.9	4820	1985
4×150	11.7	1.4	2.3	44	5931	2433
4×185	12	1.6	2.4	48.6	7367	2990
4×240	15.9	1.7	2.6	54.1	9540	3787
4×300	17.8	1.8	2.8	60.1	11888	4670

0.6/1kV 5-core XLPE Insulated PVC Sheathed Power Cable YJV, YJLV

Normal Cross-section	OD. of Conductor	Normal Thickness of Insulation	Normal Thickness of Sheath	Approx. OD.	Approx. Weight
					kg/km
mm2	mm	mm	mm	mm	CU	AL
5×4	2.2	1	1.8	14.2	314.2	190
5×6	2.8	1	1.8	15.6	426.4	237.8
5×10	4.1	1	1.8	19.1	666.7	346
5×16	5.1	1	1.8	22	978.8	470.3
5×25	6.4	1.2	1.8	26.6	1503	697.4
5×35	7.6	1.2	1.8	29.7	2004	887.1
5×50	8.3	1.4	2	32.6	2605	1132
5×70	9.8	1.4	2.1	37.8	3617	1536
5×95	11.5	1.6	2.3	42.8	5006	2053
5×120	12.9	1.6	2.4	47.3	6276	2541
5×150	14.5	1.8	2.6	53.1	7897	3201
5×185	16	2	2.8	58.6	9297	3692
5×240	18.3	2.2	3	65.8	12220	4882
5×300	20.5	2.4	3.2	72.7	15530	6108

0.6/1kV 4+1-core XLPE Insulated PVC Sheathed Power Cable YJV, YJLV

Normal Cross-section	OD. of Conductor	Normal Thickness of Insulation	Normal Thickness of Sheath	Approx. OD.	Approx. Weight
					kg/km
mm2	mm	mm	mm	mm	CU	AL
4×4+1×2.5	2.2	0.7	1.8	14	297.6	182.5
	1.8	0.7
4×6+1×4	2.8	0.7	1.8	15.4	403.9	228.1
	2.2	0.7
4×10+1×6	4.1	0.7	1.8	18.4	617.7	323.6
	2.8	0.7
4×16+1×10	5.1	0.9	1.8	21.4	915.9	445
	4.1	0.7
4×25+1×16	6.4	0.9	1.8	25.7	1397	650.8
	5.1	0.7
4×35+1×16	7.6	0.9	1.8	28.1	1796	800.6
	5.1	0.7
4×50+1×25	8.3	1	1.9	31.5	2371	1039
	6	0.9
4×70+1×35	9.8	1.1	2.1	36.1	3287	1403
	7	0.9
4×95+1×50	11.5	1.1	2.2	40.8	4515	1857
	8.3	1
4×120+1×70	12.9	1.2	2.4	45.5	5750	2346
	9.8	1.2
4×150+1×70	14.5	1.4	2.5	50	7025	2852
	9.8	1.1
4×185+1×95	16	1.6	2.7	55.5	8525	3451
	11.5	1.1
4×240+1×120	18.3	1.7	2.9	62.1	11008	4392
	12.9	1.2
4×300+1×150	20.5	1.8	3.1	68.8	13978	5501
	14.5	1.4
