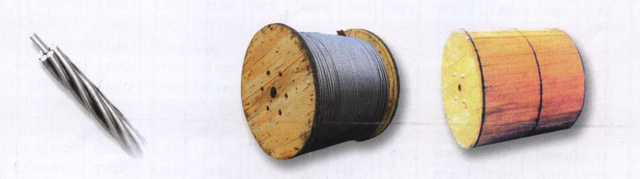

Galvanized Steel Stranded Conductor (STAY WIRE)

Galvanized Steel Stranded Conductor (STAY WIRE)

Construction	St. wire Dia.	Stranded Wires Dia.	Total Area	Specific Tensile Strength N/mm N/mm²					Weight
	St. wire Dia.	Stranded Wires Dia.	Total Area	1175	1270	1370	1470	1570	Weight
	mm	mm	mm²	Min. Total Breaking Load of Wires					kg/100m
1*3	2.9	6.2	19.82	23.29	25.17	27.15	29.14	31.12	15.99
	3.2	6.4	24.13	28.35	30.65	33.06	35.47	37.88	19.47
	3.5	7.5	28.86	33.91	36.55	39.54	42.43	45.31	23.29
	4	8.6	37.7	44.3	47.88	51.65	8.08	59.19	30.42
1*7	1	3	5.5	6.46	6.98	7.54	11.64	8.64	4.37
	1.2	3.6	7.92	9.31	10.06	10.85	11.64	12.43	6.29
	1.4	4.2	10.78	12.67	13.69	14.77	15.85	16.92	8.56
	1.6	4.8	14.07	16.53	17.87	19.28	20.68	22.09	11.17
	1.8	5.4	17.81	20.93	22.62	24.4	26.18	27.96	14.14
	2	6	21.99	25.84	29.73	30.13	32.32	34.52	17.46
	2.3	6.9	29.08	34.17	36.93	39.84	42.75	45.66	23.09
	2.6	7.8	37.17	43.6	47.2	50.92	54.63	58.35	29.51
	2.9	8.7	46.24	54.33	58.72	63.35	67.97	72.6	36.71
	3.2	9.6	56.3	66.15	71.5	77.13	82.76	88.39	44.7
	3.5	10.5	67.35	79.14	85.85	92.27	99	105.74	63.48
	3.8	11.4	79.39	93.28	100.82	108.76	116.7	124.64	63.04
	4	12	87.96	103.35	111.71	120.5	129.3	138.1	69.84
1*19	1.6	8	38.2	44.88	48.51	52.33	56.15	59.97	30.4
	1.8	9	48.35	56.81	61.4	66.24	71.07	75.91	38.49
	2	10	59.69	70.14	75.81	81.78	87.74	93.71	47.51
	2.3	11.5	78.94	92.75	100.25	108.15	116.04	123.94	62.84
	2.6	13	100.88	118.53	128.12	138.2	148.29	158.38	80.3
	2.9	14.5	125.5	147.46	159.38	171.93	184.48	197.03	99.9
	3.2	16	152.81	179.55	194.06	209.35	224.63	239.91	121.64
	3.5	17.5	182.8	214.79	232.16	250.44	268.72	287	145.51
	4	20	238.76	280.54	303.23	327.1	350.98	374.86	190.05
