DXW Series for Low Temperature Range
1. DXW series of self-regulating heat trace cable is applicable for freeze protection and temperature regulation in pipes, storage tank, etc. It has a maximum maintenance temperature of 65±5ºC. Product types are as below:

DXW-J	DXW-Jz	DXzW-J	DXzW-Jz	DXkW-J	DXkW-Jz
DXW-P	DXW-Pz	DXzW-P	DXzW-Pz	DXkW-P	DXkW-Pz
DXW-P/J	DXW-Pz/J	DXzW-P/J	DXzW-Pz/J	DXkW-P/J	DXkW-Pz/J
DXW-P/Jz	DXW-Pz/Jz	DXzW-P/Jz	DXzW-PZ/Jz	DXkW-P/Jz	DXkW-Pz/Jz

2. Structure:

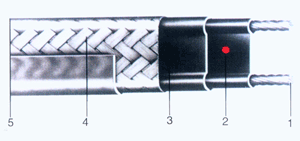

[1]Copper conductor lead (7/0.3, 19/0.3, 7/0.6)
[2]Conductive plastic inner layer (PTC)
[3]PO or fluoroplastic insulating layer
[4]Tinning copper braid shielding layer
[5]PO or fluoroplastic reinforced sheathing layer

3. SPEC:
3.1 Standard Color: BLACK, BLUE

3.2 Temperature Range:
Maximal maintenance temperature: 65ºC
Maximal surface temperature: 70ºC
Maximal exposure temperature: 105ºC

3.3 Installation temperature: No less than -40ºC
3.4 Thermal stability: Make-and-break for 1000 times, continue for 22 days, the heating power of heater wire is no less than 90%.
3.5 Minimal Bending Radius: 12.7mm at 20ºC and 35.0mm at -30ºC
3.6 Insulation Resistance: No less than 3000MΩ for cable with length of 100m at environment temperature 75ºC, test by 2,500VDC meter for 1 minute
3.7 Working Voltage: 12V, 24V, 36V, 110V, 220V, 380V
3.8 Output power at 10ºC: 10, 15, 25, 35, 45W/m

ZXW Series for Middle Temperature Range
1.ZXW series of self-regulating heat trace cable is applicable for freeze protection, temperature regulation and district heating in pipes, storage tank, instruments, etc. It has a maximum maintenance temperature of 105ºC. Product types are as below:

ZXW-J	ZXW-Jz	ZXzW-J	ZXzW-Jz	ZXkW-J	ZXkW-Jz
ZXW-P	ZXW-Pz	ZXzW-P	ZXzW-Pz	ZXkW-P	ZXkW-Pz
ZXW-P/J	ZXW-Pz/J	ZXzW-P/J	ZXzW-Pz/J	ZXkW-P/J	ZXkW-Pz/J
ZXW-P/Jz	ZXW-Pz/Jz	ZXzW-P/Jz	ZXzW-PZ/Jz	ZXkW-P/Jz	ZXkW-Pz/Jz

2. Structure:
[1]Copper conductor lead (7/0.3, 19/0.3, 7/0.6)
[2]Conductive plastic inner layer (PTC)
[3]PO or fluoroplastic insulating layer
[4]Tinning copper braid shielding layer
[5]PO or fluoroplastic reinforced sheathing layer

3. SPEC:
3.1 Standard Color: BROWN, ORANGE, BLACK.

3.2 Temperature Range:
Maximal maintenance temperature: 105ºC
Maximal surface temperature: 100ºC
Maximal exposure temperature: 135ºC

3.3 Installation temperature: No less than -30ºC
3.4 Thermal stability: Make-and-break for 1000 times, continue for 22 days, the heating power of heater wire is no less than 90%.
3.5 Minimal Bending Radius: 12.7mm at 20ºC and 35.0mm at -30ºC
3.6 Insulation Resistance: No less than 3000MΩ for cable with length of 100m at environment temperature 75ºC, test by 2,500VDC meter for 1 minute
3.7 Working Voltage: 12V, 24V, 36V, 110V, 220V, 380V
3.8 Output power at 10ºC: 25, 35, 40, 45, 55, 60W/m

GXW Series for High Temperature Range
1. GXW series self-regulating heat trace cable can be used for high temperature steam purging at intervals, It is applicable for freeze protection, temperature regulation and district heating in pipes, storage tank. It has a maximum maintenance temperature of 135ºC. Product types are as below:

GXW-J	GXzW-J	GXkW-J
GXW-P	GXzW-P	GXkW-P
GXW-P/J	GXzW-P/J	GXkW-P/J

2. Structure:
[1]Copper conductor lead (7/0.3, 19/0.3, 7/0.6)
[2]PTC with fluoride
[3]Fluoroplastic insulating layer
[4]Tinning copper braid shielding layer
[5]Fluoroplastic reinforced sheathing layer

3. SPEC:
3.1 Standard Color: BROWN, BLUE, ORANGE, RED.

3.2 Temperature Range:
Maximal maintenance temperature: 135ºC
Maximal surface temperature: 135ºC
Maximal exposure temperature: 155ºC

3.3 Installation temperature: No less than -30ºC
3.4 Thermal stability: Make-and-break for 1000 times, continue for 22 days, the heating power of heater wire is no less than 90%.
3.5 Minimal Bending Radius: 25.4mm at 20ºC and 50.8mm at -30ºC
3.6 Insulation Resistance: No less than 3000MΩ for cable with length of 100m at environment temperature 75ºC, test by 2,500VDC meter for 1 minute
3.7 Working Voltage: 12V, 24V, 36V, 110V, 220V, 380V
3.8 Output power at 10ºC: 25, 35, 45, 55, 65, 75W/m

Special Series
1. TDXW. TZXW. TGXW series of self-regulating heat trace cables are much longer than normal series. They are spacialy used for freeze protection and temperature regulation in long pipes. Their maximum maintenance temperatures are respectively 65ºC, 105ºC and 135ºC. From a single output, the cable can be 2000m.

2. These special series of cables are series connected by 3 general heat trace cables in equal length. They are powered by three-phase supply.

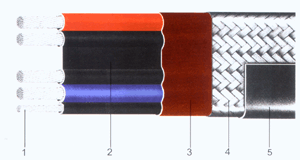

3. Structure:
[1]Copper conductor (null line is 2mm², other line is 2.5-4.8mm²)
[2]DXkW. ZXkW. GXkW self regulating ribbon heater
[3]Polyolefin (or fluoroplastic) insulating inner layer
[4]Tinning copper braid (or aluminum foil) shielding layer (equivalent to 4.8mm² conductor)
[5]Fluoroplastic or PO insulating anti-corrosion sheath

4. SPEC:
4.1 Standard Color: BLACK (Color of ribbon heater's sheath are BLACK, RED AND BROWN)
4.2 Temperature Range: The same as DXW, ZXW, GXW
4.3 Voltage: AC 380∼600V, three-phase supply, 4 wires
4.4 Length of cable as below

	Single Power Source	Single Power Supply	Bi-directional Power Supply
380V AC	Min Length	305m	610m
	Max Length	1000m	2000m
600V AC	Min Length	1000m	2000m
	Max Length	2000m	4000m
