1. Silicon Rubber Insulated Fiberglass Braid Coated High Temperature Resistant Cable

Code:
  YG-AGR: tinned copper conductor silicon rubber insulated wire
  YG-AGRP: tinned copper conductor silicon rubber insulated fiberglass braided cable
Standards: IEC60245-03

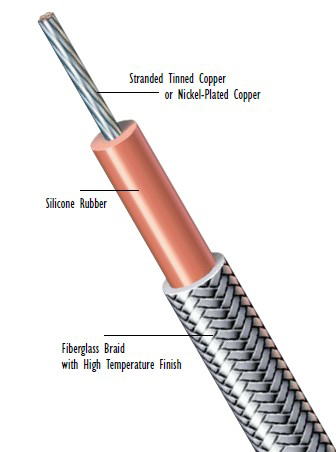

Construction:
  1- Flexible Copper Conductor
  2- Silicone Rubber Insulation
  3- Fiberglass Braid with High Temperature Finish
Application & Conditions:
  For circuits in high temperature condition.
  Rated Voltage 300/500V
  Operating temperature range -60 ℃∼ 280 ℃
  After totally immersed in 20±5℃ water for 1 hour, the wire can sustain 5 minutes in 2000V.
Technical Data:

Nominal Cross Section	No. of Wires & Diameter	Max Φ of wire in conductor	Thickness of Insulation		Overall Diameter	Conductor DC Resistance at 20℃	High-Voltage Spark Test	Approx. Total Weight
mm2	No.×mm	mm	min	avg	mm	Ω/km	kV	kg/km
0.30	12/0.18	0.21	0.44	0.60	1.9±0.05	53.1	3	6.0
0.50	28/0.15	0.21	0.44	0.60	2.2±0.05	40.1	3	9.0
	20/0.18	0.21	0.44	0.60		40.1	3
0.75	30/0.18	0.21	0.44	0.60	2.4±0.10	26.0	3	12
	24/0.20	0.21	0.44	0.60		26.0	3
1.0	32/0.20	0.21	0.44	0.60	2.5±0.10	19.5	3	14.5
1.50	30/0.25	0.26	0.53	0.70	2.9±0.10	13.3	5	20
2.00	40/0.25	0.26	0.53	0.70	3.10±0.10	10.0	5	24.5
2.50	49/0.25	0.26	0.62	0.80	3.78±0.10	7.98	5	29.5
4.0	56/0.30	0.31	0.62	0.80	4.2±0.10	4.95	6	47
6.0	84/0.30	0.31	0.62	0.80	5.0±0.10	3.3	6	65
10.0	84/0.40	0.41	0.8	1.0	6.98±0.10	1.91	6	125
16.0	126/0.40	0.41	0.8	1.2	8.00±0.10	1.21	6	175
16.0	84/0.50	0.51	0.8	1.2	8.00±0.10	1.2	6	175
25	196/0.40	0.41	0.8	1.2	10.4	1.08	6	26
35	280/0.40	0.41	0.8	1.4	12.6	1.0	6	37
50	399/0.40	0.40	0.8	1.6	14.5	0.8	6	55

2. UL3122 Silicon Rubber Insulated Fiberglass Braid Coated Wire

Application:
  Household electric appliance, lamps and lanterns, electric equipment, temperature sensor end, etc.
Construction
  1- Tinned copper conductor
  2- Silicon rubber insulation
  3- Fiberglass braid with silicone.
Condition:
  Rated voltage 300V
  Operating temperature range -60 ℃∼ 200 ℃
Technical Data:

Conductor			Insulation		Electrical Character	Packing
AWG	No. of Wires & Diameter	Diameter	Insulation Thickness	Diameter	Conductor DC Resistance	Meter/Roll
	No.×mm	mm	mm	mm	Ω/km
16	7×0.50	1.50	0.39	2.58	14.6	305
17	32×0.20	1.34	0.39	2.42	18.3	305
18	7×0.40	1.20	0.39	2.28	23.2	305
20	7×0.32	0.96	0.39	2.04	36.7	305
22	7×0.26	0.78	0.39	1.86	59.4	610
24	7×0.20	0.60	0.39	1.68	94.2	610
26	7×0.16	0.48	0.39	1.56	150	610

3. UL3135 Silicon Rubber Wire

Application:
  Household electric appliance, lamps and lanterns, electric equipment, temperature sensor end, etc.
Construction
  1- Tinned / Silvered / Nickle-Plated copper conductor
  2- Silicon rubber insulation
Condition:
  Rated voltage 600V
  Operating temperature range -60 ℃∼ 200 ℃
Technical Data:

Conductor			Insulation		Electrical Character	Packing
AWG	No. of Wires & Diameter	Diameter	Insulation Thickness	Diameter	Conductor DC Resistance	Meter/Roll
	No.×mm	mm	mm	mm	Ω/km
10	77×0.30	3.45	0.78	5.10	3.546	305
12	49×0.30	2.70	0.78	4.26	5.64	305
14	40×0.26	1.90	0.78	3.46	8.96	305
16	7×0.50	1.50	0.78	3.06	14.6	305
17	32×0.20	1.34	0.78	2.90	18.3	305
18	7×0.40	1.20	0.78	2.76	23.2	305
20	7×0.32	0.96	0.78	2.52	36.7	305
22	7×0.26	0.78	0.78	2.34	59.4	610
24	7×0.20	0.60	0.78	2.16	94.2	610
26	7×0.16	0.48	0.78	2.04	150	610
28	7×0.12	0.36	0.78	1.92	239	610
30	7×0.10	0.30	0.78	1.86	381	610

4. AGG Silicon Rubber Insulated High Temperature Resistant Oil Resistant High Voltage Cable

Application
  High voltage electrode, connection, lead of instrument.

Type	Nominal Cross-Section Area	No. of Wires & Diameter	Outer Diameter (mm)
	mm2	No.×mm	5kV	10kV	15kV	20kV	25kV	30kV
AGG	0.2	7×0.20	2.4-2.7	2.9-3.2	3.7-4.0	3.9-4.2	5.8-6.2	6.5-7.0
	0.5	7×0.30	3.2	3.6	4.3	5.2	6.3	7.6
	1.0	19×0.26	4.1	4.5	5.2	6.0	7.1	8.5



Type	Voltage Level	Nominal Cross-Section Area Range	Insulation Thickness
	kV	mm2	mm
AGG	5	0.2-2.5	1.0
	12	0.2-2.5	1.3
	15	0.2-2.5	1.7
	20	0.2-2.5	1.8
	25	0.2-2.5	2.8
	30	0.2-2.5	3.2
	40	0.2-2.5	4.2
	50	0.2-2.5	5.5
	60	0.2-2.5	7.0

5. JGG Silicon Rubber Insulated High Temperature Resistant Oil Resistant High Voltage Cable

Application
  Lead for insulated electric apparatus whose rated voltage is within 6/10kV.

Nominal Cross Section	No. of Wires & Diameter	Insulation Thickness		Outer Diameter
mm2	No.×mm	6kV	10kV	6kV	10kV
6.0	84×0.30	3.5	5.0	12.5	15.5
10.0	84×0.40	3.5	5.0	13.5	16.5
16.0	126×0.40	3.5	5.0	15.0	18.0
25	196×0.40	3.5	5.0	16.5	19.5
35	276×0.40	3.5	5.0	18.0	21.0
50	396×0.40	3.5	5.0	20.0	23.0
70	360×0.50	3.5	5.0	21.5	24.5
95	475×0.50	3.5	5.0	23.0	26.5
120	608×0.50	4.0	5.0	25.0	27.5
150	756×0.50	4.0	5.0	27.0	29.0
185	925×0.50	5.0	5.0	31.0	33.0
240	1221×0.50	5.5	5.0	35.0	37.0

6. JHXG Silicon Rubber Insulated High Temperature Resistant Oil Resistant High Voltage Cable

Application
  Lead for F/H class super power electric motor whose AC rated voltage is within 1140V.

Nominal Cross Section	No. of Wires & Diameter	Outer Diameter	Nominal Cross Section	No. of Wires & Diameter	Outer Diameter
mm2	No.×mm	mm	mm2	No.×mm	mm
0.75	24×0.20	3.4	16	126×0.40	9.2
1.0	32×0.20	3.6	25	196×0.40	11
1.5	30×0.25	3.8	35	276×0.40	13
2.5	49×0.25	4.7	50	396×0.40	15
4.0	56×0.30	5.5	70	360×0.50	17.3
6.0	84×0.30	6.0	95	475×0.50	20.1
10.0	84×0.40	7.6	120	608×0.50	25.5

7. Fluoroplastic Insulated Silicon Rubber Sheathed Control Cable

Character and Application
  High temperature resistant, fire retardant, radiation resistant, age resistant, ozone resistant, water resistant, applicable for control and monitor circuits with rated voltage 450/750V in high temperature condition in industry such as aviation, metallurgy, oil, chemical, power mill, etc.
Condition
  Rated voltage within 450/750V
  Maximum conductor temperature 260°C
  Working temperature -30°C∼180°C for unfixed installation and -50°C∼180°C for fixed installation.
Main Technical Specification
  Rated voltage 600V, endurable for 5 minutes test of AC 2500V/50Hz.
  Insulation resistance between conductors (20°C) ≥103MΩ.km.

1. conductor 2. FEP insulation 3. Polyester tape or F4 tape 4. Metal scresn 5. Isolation Strip 6. Silicon rubber sheath



Type	Description	Specifications
		No. of Conductor	Nominal Cross-Section Area (mm2)
YGC-KHAF46R	Copper conductor fluoroplastic insulated silicon rubber sheathed soft control cable	2-37	1.5, 2.5, 4, 6, 10
YGC-KHAF46RP	Copper conductor fluoroplastic insulated silicon rubber sheathed metal braid screened soft control cable	2-37	1.5, 2.5, 4, 6, 10
YGC-KHAF46RP2	Copper conductor fluoroplastic insulated silicon rubber sheathed copper tape screened soft control cable	2-37	1.5, 2.5, 4, 6, 10
YGC-KHAF46	Copper conductor fluoroplastic insulated silicon rubber sheathed control cable	2-37	1.5, 2.5, 4, 6, 10
YGC-KHAF46P	Copper conductor fluoroplastic insulated silicon rubber sheathed metal braid screened control cable	2-37	1.5, 2.5, 4, 6, 10
YGC-KHAF46P2	Copper conductor fluoroplastic insulated silicon rubber sheathed steel tape screened control cable	2-37	1.5, 2.5, 4, 6, 10
YGC-KHAF4622	Copper conductor fluoroplastic insulated silicon rubber sheathed steel tape armored control cable	2-37	1.5, 2.5, 4, 6, 10
YGC-KHAF4632	Copper conductor fluoroplastic insulated silicon rubber sheathed copper wire armored control cable	2-37	1.5, 2.5, 4, 6, 10

8. Silicon Rubber Insulated Silicon Rubber Sheathed Control Cable

Character and Application
  High temperature resistant, fire retardant, radiation resistant, age resistant, ozone resistant, water resistant, applicable for control and monitor circuits with rated voltage 450/750V in high temperature condition in industry such as steel, aviation, metallurgy, oil, chemical, power mill, etc.
Condition
  Rated voltage within 450/750V
  Maximum conductor temperature 260°C
  Working temperature -30°C∼180°C for unfixed installation and -50°C∼180°C for fixed installation.
  Can work long time in moist condition.
  Very flexible, the minimal bend radius is 16 times of outer diameter.
Main Technical Specification
  Rated voltage 600V, endurable for 5 minutes test of AC 2500V/50Hz.
  Insulation resistance between conductors (20°C) ≥103MΩ.km.

Type	Nominal Cross-Section Area	No. of Wires & Diameter	Insulation Thickness	No. of Conductor
	mm2	No.×mm	mm
YGZ YGZB Middle Type KGP	0.75	24×0.20	0.6	2-4
	1	32×0.20	0.6
	1.5	30×0.25	0.7
	2.5	49×0.25	0.8
YGC YGCB Heavy Type	4.0	56×0.30	1.0	2-25
	6	84×0.30	1.0	2-16
	10	84×0.40	1.2
	16	126×0.40	1.2	2-7
	25	196×0.40	1.4
	35	276×0.40	1.4
	50	396×0.40	1.6
	70	360×0.50	1.6
	95	475×0.50	1.8
	120	608×0.50	2.0
	150	756×0.50	2.4
