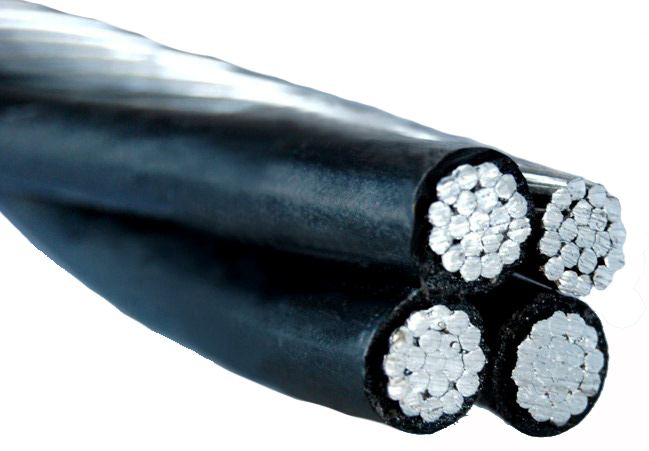

Overhead Power Cable
Cables for overhead installations may be used in different types of installations: on free hanging facades between posts; on fixed facades; trees and poles. Interception of forest areas without the need of clearance and maintenance of openings is allowed.
- Cables with supporting zero conductor, the whole bundle is suspended and carried by the supporting conductor, which is made of aluminum compound.
- Self-supporting construction, suspension and carrying of the whole bundle is done by the phase insulated conductors.
Bundles can include one or two additional conductors for public lighting and control pair.
0.6/1kV Aerial Bunched Cable (ABC) (British/IEC Standard)
| Nominal Area | Number/Dia. | Insulation Thickness |
| mm2 | mm | mm |
| 1*16+16 | 7/1.70 | 1.3 |
| 2*16+16 | 7/1.70 | 1.3 |
| 3*16+16 | 7/1.70 | 1.3 |
| 4*16 | 7/1.70 | 1.3 |
| 1*25+25 | 7/2.10 | 1.3 |
| 2*25+25 | 7/2.10 | 1.3 |
| 3*25+25 | 7/2.10 | 1.3 |
| 4*25 | 7/2.10 | 1.3 |
| 1*35+35 | 7/2.50 | 1.3 |
| 2*35+35 | 7/2.50 | 1.3 |
| 3*35+35 | 7/2.50 | 1.3 |
| 4*35 | 7/2.50 | 1.3 |
| 1*50+50 | 7/3.0 | 1.5 |
| 3*50+50 | 7/3.0 | 1.5 |
| 1*70+70 | 19/2.10 | 1.5 |
| 3*70+70 | 19/2.10 | 1.5 |
| 3*95+95 | 19/2.50 | 1.6 |
0.6/1kV Aerial Bunched Cable(ABC) (Standard NFC33-209)
| Model No. | Phase No./Dia. (mm) | XLPE | Neutral No./Dia. (mm) | XLPE | EP No./Dia. (mm) | XLPE |
| mm | mm | mm | ||||
| 3*35+54.6AAAC+16 | 7/2.52 | 1.60 | 7/3.15 | 1.60 | 7/1.70 | 1.20 |
| 3*70+54.6AAAC+2*16 | 12/2.72 | 1.80 | 7/3.15 | 1.60 | 7/1.70 | 1.20 |
0.6/1kV Aerial Cable PVC Insulated JKLV, JKV
| Nominal Cross-sectional Area | Max. Overall Diameter of Cable | Max. Resistance of Conductor at 20℃ | Min. Insulation Resistance at 90 ℃ | Breaking Load of Cable | Reference Weight of Cable | |||
| mm2 | mm | Ω/km | MΩ。km | N | Kg/km | |||
| Cu | Al | Cu | Al | CU | AL | |||
| 10 | 6.5 | 1.906 | 3.08 | 0.67 | 3471 | 1650 | 106 | 43 |
| 16 | 8 | 1.198 | 1.91 | 0.65 | 5486 | 2517 | 168 | 68 |
| 25 | 9.4 | 0.749 | 1.2 | 0.54 | 8465 | 3762 | 254 | 97 |
| 35 | 11 | 0.54 | 0.868 | 0.54 | 11731 | 5177 | 354 | 135 |
| 50 | 12.3 | 0.399 | 0.641 | 0.46 | 16502 | 7011 | 496 | 182 |
| 70 | 14.1 | 0.276 | 0.443 | 0.4 | 23461 | 10354 | 683 | 244 |
| 95 | 16.5 | 0.199 | 0.32 | 0.39 | 31759 | 13727 | 925 | 330 |
| 120 | 18.1 | 0.158 | 0.253 | 0.35 | 39911 | 17339 | 1157 | 406 |
| 150 | 20.2 | 0.128 | 0.206 | 0.35 | 49505 | 21033 | 1448 | 508 |
| 185 | 22.5 | 0.1021 | 0.164 | 0.35 | 61846 | 26732 | 1786 | 626 |
| 240 | 25.6 | 0.0777 | 0.125 | 0.34 | 79823 | 34679 | 2310 | 806 |
10kV Aerial Cable AL Conductor XLPE Insulated JKLYJ
| Nominal Cross-sectional Area | Nominal Thickness of Insulation | Approx. OD. | Max. Resistance of Conductor at 20 ℃ | Min. Breaking Load of Cable | Approx. Weight of Completed Cable |
| mm2 | mm | mm | Ω/km | N | Kg/km |
| 35 | 3.4 | 14.8 | 0.868 | 7011 | 300.8 |
| 50 | 3.4 | 16.1 | 0.641 | 7 | 359.8 |
| 70 | 3.4 | 17.8 | 0.443 | 10354 | 441 |
| 95 | 3.4 | 19.6 | 0.32 | 13727 | 548 |
| 120 | 3.4 | 21 | 0.253 | 17339 | 643 |
| 150 | 3.4 | 22.6 | 0.206 | 21033 | 753.6 |
| 185 | 3.4 | 24.2 | 0.164 | 26732 | 877.3 |
| 240 | 3.4 | 26.4 | 0.125 | 34679 | 1061.3 |
| 300 | 3.4 | 28.6 | 0.1 | 43349 | 1263.7 |
10kV Aerial Cable AL Conductor PE Insulated JKLY
| Nominal Cross-sectional Area | Nominal Thickness of Insulation | Approx. OD. | Max. Resistance of Conductor at 20 ℃ | Min. Breaking Load of Cable | Approx. Weight of Completed Cable |
| mm2 | mm | mm | Ω/km | N | Kg/km |
| 25 | 3.4 | 13.8 | 1.2 | 3762 | 210 |
| 35 | 3.4 | 14.8 | 0.868 | 5177 | 300.8 |
| 50 | 3.4 | 16.1 | 0.641 | 7011 | 359.8 |
| 70 | 3.4 | 17.8 | 0.443 | 10354 | 441 |
| 95 | 3.4 | 19.6 | 0.32 | 13727 | 548 |
| 120 | 3.4 | 21 | 0.253 | 17339 | 643 |
| 150 | 3.4 | 22.6 | 0.206 | 21033 | 753.6 |
| 185 | 3.4 | 24.2 | 0.164 | 26732 | 877.3 |
| 240 | 3.4 | 26.4 | 0.125 | 34679 | 1061.3 |
| 300 | 3.4 | 28.6 | 0.1 | 43349 | 1263.7 |
10kV Aerial Cable ACSR Conductor XLPE Insulated JKLGYJ
| Nominal Cross-sectional Area | Nominal Thickness of Insulation | Approx. OD. | Max. Resistance of Conductor at 20 ℃ | Min. Breaking Load of Cable | Approx. Weight of Completed Cable |
| mm2 | mm | mm | Ω/km | N | Kg/km |
| Jun-35 | 3.4 | 12.7 | 0.868 | 11990 | 285.9 |
| Aug-50 | 3.4 | 13.9 | 0.641 | 11020 | 354.5 |
| 50/30 | 3.4 | 25.9 | 0.641 | 40500 | 564.5 |
| Oct-70 | 3.4 | 15.5 | 0.443 | 22220 | 450.9 |
| 70/40 | 3.4 | 27.1 | 0.443 | 55390 | 718.9 |
| 95/15 | 3.4 | 17.8 | 0.32 | 33250 | 589.1 |
| 95/20 | 3.4 | 18.3 | 0.32 | 35340 | 623.6 |
| 95/55 | 3.4 | 27.3 | 0.32 | 74200 | 956.8 |
| 120/7 | 3.4 | 18.3 | 0.253 | 26190 | 589.9 |
| 1250/20 | 3.4 | 19.1 | 0.253 | 38950 | 690.3 |
| 120/25 | 3.4 | 19.9 | 0.253 | 45480 | 760.8 |
| 120/70 | 3.4 | 27.9 | 0.253 | 93450 | 1167.6 |
| 150/8 | 3.4 | 19.8 | 0.206 | 31220 | 689.1 |
| 150/20 | 3.4 | 20.5 | 0.206 | 44300 | 787.3 |
| 150/25 | 3.4 | 20.8 | 0.206 | 51400 | 842.8 |
| 150/35 | 3.4 | 21.1 | 0.206 | 61770 | 922.7 |
| 185/10 | 3.4 | 21.8 | 0.164 | 38830 | 832.5 |
| 185/25 | 3.4 | 22.4 | 0.164 | 56450 | 963.6 |
| 185/30 | 3.4 | 22.8 | 0.164 | 61100 | 996.5 |
| 185/45 | 3.4 | 24.1 | 0.164 | 76180 | 1116.8 |
| 240/30 | 3.4 | 25.3 | 0.125 | 71840 | 1211.1 |
| 240/40 | 3.4 | 25.9 | 0.125 | 79200 | 1262.2 |
| 240/55 | 3.4 | 26.7 | 0.125 | 97000 | 1422.3 |
|
||||
