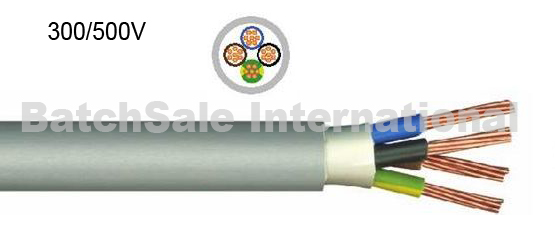

NVV PVC Wire
NVV PVC Wire, PVC cable, control cable, power control cable

Code: NVV
Standards: TS 9759 HD 21,4 S2, VDE 0250-204, BS 6004
Construction:
  1- Solid or Stranded Copper Conductor
  2- PVC Insulation
  3- PVC Filling
  4- PVC Outer Sheath
Application:
  Fixed wiring in dry and damp premises, in conduits. on or under plaster and on insulators over plaster, switching.
Technical Data :
  Max. operating temperature 70 ℃
  Short circuit temperature 160 ℃

Num. of Cores and Nominal Cross Section No. of Wires & Diameter Thickness of Insulation Thickness of Sheath Mean Overall Diameter Conductor DC Resistance at 20℃ Approx. Total Weight Max. Current Carrying Capacity at 30℃
No.×mm2 No.×mm mm mm min max Ω/km kg/km Air A
 2 × 1.5    1.35    0.7    1.2    8.4    10.0    12.1    108    22
 2 × 2.5    1.73    0.8    1.2    9.6    11.5    7.41    148    30
 2 × 4    2.19    0.8    1.2    10.5    12.5    4.61    194    40
 2 × 6    2.68    0.8    1.2    11.5    13.5    3.08    250    51
 2 × 10    7 × 1.32    1.0    1.4    14.5    16.5    1.83    427    70
 2 × 16    7 × 1.66    1.0    1.4    16.5    20.0    1.15    604    94
 3 × 1.5    1.35    0.7    1.2    8.8    10.5    12.1    128    22
 3 × 2.5    1.73    0.8    1.2    10.0    12.0    7.41    179    30
 3 × 4    2.19    0.8    1.2    11.0    13.0    4.61    239    40
 3 × 6    2.68    0.8    1.2    12.5    14.5    3.08    319    51
 3 × 10    7 × 1.32    1.0    1.4    15.5    17.5    1.83    535    70
 3 × 16    7 × 1.66    1.0    1.4    18.0    21.5    1.15    769    94
 4 × 1.5    1.35    0.7    1.2    9.6    11.5    12.1    154    18.5
 4 × 2.5    1.73    0.8    1.2    11.0    13.0    7.41    219    25
 4 × 4    2.19    0.8    1.2    12.0    14.5    4.61    301    34
 4 × 6    2.68    0.8    1.2    14.0    16.0    3.08    399    43
 4 × 10    7 × 1.32    1.0    1.4    16.5    19.0    1.83    669    60
 4 × 16    7 × 1.66    1.0    1.4    20.0    23.5    1.15    970    80
 5 × 1.5    1.35    0.7    1.2    10.0    12.0    12.1    181    15.5
 5 × 2.5    1.73    0.8    1.2    12.0    14.5    7.41    262    22
 5 × 4    2.19    0.8    1.2    13.5    16.0    4.61    364    31
 5 × 6    2.68    0.8    1.2    15.0    17.5    3.08    483    40
 5 × 10    7 × 1.32    1.0    1.4    18.0    21.0    1.83    828    56.5
