NHMH HALOGEN FREE PVC Wire
NHMH PVC Wire, PVC cable, control cable, power control cable

Code: NHMH
Standards: VDE 0250 215

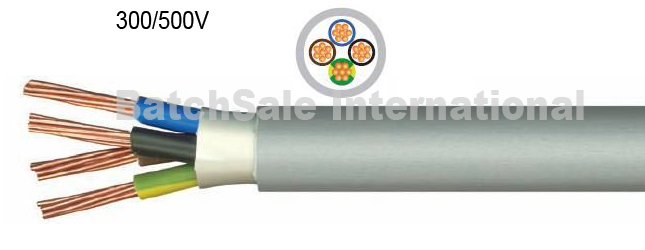

Construction:
  1- Solid or Stranded Copper Conductor
  2- Special LSOH Insulation
  3- Special LSOH Filling
  4- Special LSOH Outer Sheath
Application:
  Places where there is risk of fire and crowded places like shopping malls, business centers , hotels, schools, tunnels etc.
Technical Data :
  Max. operating temperature 70℃

Num. of Cores and Nominal Cross Section No. of Wires & Diameter Thickness of Insulation Thickness of Sheath Average Overall Diameter Approx. Total Weight
No.×mm2 No.×mm mm mm max.mm kg/km
 1 × 1.5    1.35    0.5    1.2    4.8    37.0
 1 × 2.5    1.73    0.5    1.2    5.2    48.0
 1 × 4    2.19    0.6    1.2    5.8    66.0
 1 × 6    2.68    0.6    1.2    6.3    86.0
 1 × 10    7 × 1.32    0.7    1.2    7.8    138
 1 × 16    7 × 1.66    0.7    1.2    8.8    199
 2 × 1.5    1.35    0.5    1.2    7.7    88.0
 2 × 2.5    1.73    0.5    1.2    8.5    116
 2 × 4    2.19    0.6    1.2    9.8    162
 2 × 6    2.68    0.6    1.2    10.8    212
 2 × 10    7 × 1.32    0.7    1.4    14.4    370
 2 × 16    7 × 1.66    0.7    1.4    16.4    524
 3 × 1.5    1.35    0.5    1.2    8.1    105
 3 × 2.5    1.73    0.5    1.2    9.0    142
 3 × 4    2.19    0.6    1.2    10.4    202
 3 × 6    2.68    0.6    1.4    11.9    280
 3 × 10    7 × 1.32    0.7    1.4    15.5    472
 3 × 16    7 × 1.66    0.7    1.4    17.7    681
 4 × 1.5    1.35    0.5    1.2    8.7    126
 4 × 2.5    1.73    0.5    1.2    9.7    172
 4 × 4    2.19    0.6    1.4    11.6    258
 4 × 6    2.68    0.6    1.4    12.8    346
 4 × 10    7 × 1.32    0.7    1.4    16.9    587
 4 × 16    7 × 1.66    0.7    1.4    19.3    854
 5 × 1.5    1.35    0.5    1.2    9.5    152
 5 × 2.5    1.73    0.5    1.2    10.6    210
 5 × 4    2.19    0.6    1.4    12.8    317
 5 × 6    2.68    0.6    1.4    14.2    427
 5 × 10    7 × 1.32    0.7    1.4    18.6    720
 5 × 16    7 × 1.66    0.7    1.6    21.7    1074
