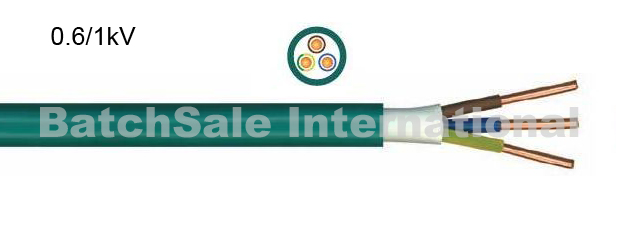

N2XH HALOGEN FREE PVC Wire
N2XH PVC Wire, PVC cable, control cable, power control cable

Code: N2XH
Standards: VDE 276-604
Construction:
  1- Solid or Stranded Copper Conductor
  2- XLPE insulation(cross-linked PE).
  3- Special LSOH Filling
  4- Special LSOH Outer Sheath
Application:
  Places where there is risk of fire and crowded places like shopping malls, business centers, hotels, schools, tunnels etc.
Technical Data :
  Max. operating temperature 90℃

Num. of Cores and Nominal Cross Section No. of Wires & Diameter Thickness of Insulation Thickness of Sheath Average Overall Diameter Approx. Total Weight
No.×mm2 No.×mm mm mm max.mm kg/km
 2 × 1.5    1.35    0.7    1.8    10.1    126
 2 × 2.5    1.73    0.7    1.8    10.9    157
 2 × 4    2.19    0.7    1.8    11.8    200
 2 × 6    2.68    0.7    1.8    12.8    253
 2 × 10    7 × 1.32    0.7    1.8    15.4    395
 2 × 16    7 × 1.66    0.7    1.8    17.6    558
 3 × 1.5    1.35    0.7    1.8    10.6    147
 3 × 2.5    1.73    0.7    1.8    11.5    187
 3 × 4    2.19    0.7    1.8    12.4    243
 3 × 6    2.68    0.7    1.8    13.5    315
 3 × 10    7 × 1.32    0.7    1.8    16.5    495
 3 × 16    7 × 1.66    0.7    1.8    18.9    712
 3 × 16 + 10    7×1.66 / 7×1.32    0.7/07    1.8    20.1    817
 4 × 1.5    1.35    0.7    1.8    11.3    173
 4 × 2.5    1.73    0.7    1.8    12.3    224
 4 × 4    2.19    0.7    1.8    13.4    292
 4 × 6    2.68    0.7    1.8    14.6    382
 4 × 10    7 × 1.32    0.7    1.8    17.9    612
 4 × 16    7 × 1.66    0.7    1.8    20.5    889
 5 × 1.5    1.35    0.7    1.8    12.3    205
 5 × 2.5    1.73    0.7    1.8    13.4    267
 5 × 4    2.19    0.7    1.8    14.6    358
 5 × 6    2.68    0.7    1.8    16    471
 5 × 10    7 × 1.32    0.7    1.8    19.6    745
 5 × 16    7 × 1.66    0.7    1.8    22.6    1066
