Application of standard
XLPE insulated power cables for rated voltages up to 3.6/6kV~26/35kV are fit for AC 50Hz transmission
distribution lines for the same rated voltages. The mechanical and electrical properties of these cables are accordant
with GB/T 12706-2002<Power cables extruded insulation and their accessories of rated voltages 1kV(Um=1.2kV)
up to 35kv(Um=40.5kV)> and IEC60502-1997<Extruded insulation power cables and appendixes for rated
voltages 1kV up to 30kV>
Operating characteristics:
1. Rated voltages: 3.6/6kV~26/35kV
2. The ambient temperature for cable installation ≥0℃
3. Maximum conductor temperature in normal operation ≤90℃
4. Max operating temperature of conductor When cable short-circuited(5s maximum duration): 250℃
5.Permissible bending radius：
Single core cable: [20(D+d)+5%], mm
Multi cable: [15(D+d)+5%], mm
D---------------Actual overall diameter, mm
d---------------Actual diameter of Conductor, mm

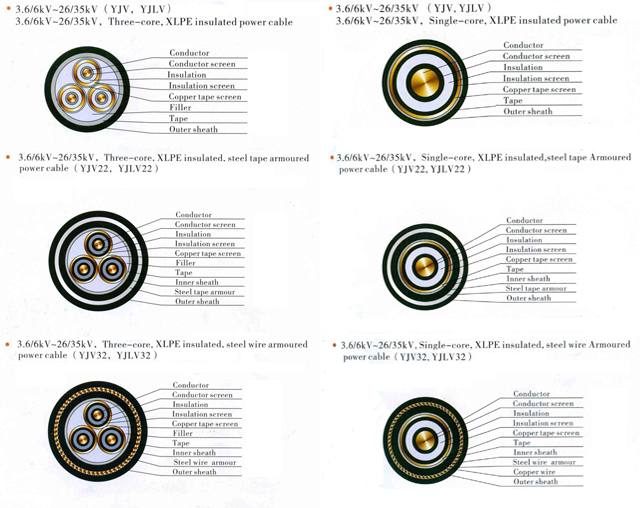

Type of cable:
| Type |
Designation |
Application |
| YJV |
Copper conductor XLPE insulated and PVC sheathed power cable |
For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single-core Cable in magnetic duct is not permissible |
| YJLV |
Aluminum conductor XLPE insulated and PVC sheathed power cable |
| YJV22 |
Copper conductor, XLPE insulated, steel tape Armored and PVC sheathed power cable |
For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force. |
| YJLV22 |
Aluminum conductor, XLPE insulated, steel tape Armored and PVC sheathed power cable |
| YJV32 |
Copper conductor, XLPE insulated, steel wire Armored and PVC sheathed power cable |
For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces, and certain pulling force. |
| YJLV32 |
Aluminum conductor, XLPE insulated, steel wire Armored and PVC sheathed power cable |
3.6/6kV Single-core XLPE insulated PVC sheathed power cable
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 1×25 |
6 |
2.5 |
1.5 |
17.9 |
560 |
390 |
| 1×35 |
7 |
2.5 |
1.6 |
18.9 |
680 |
480 |
| 1×50 |
8.3 |
2.5 |
1.6 |
20.3 |
860 |
550 |
| 1×70 |
9.8 |
2.5 |
1.7 |
21.9 |
1080 |
650 |
| 1×95 |
11.5 |
2.5 |
1.7 |
23.7 |
1350 |
760 |
| 1×120 |
12.9 |
2.5 |
1.8 |
25.2 |
1610 |
870 |
| 1×150 |
14.5 |
2.5 |
1.8 |
27 |
1920 |
990 |
| 1×185 |
16 |
2.5 |
1.9 |
28.6 |
2290 |
1140 |
| 1×240 |
18.3 |
2.6 |
2 |
31.2 |
2860 |
1370 |
| 1×300 |
20.5 |
2.8 |
2.1 |
34 |
3500 |
1640 |
| 1×400 |
23.5 |
3 |
2.2 |
37.6 |
4610 |
2140 |
| 1×500 |
26.7 |
3.2 |
2.3 |
41.3 |
5700 |
2610 |
| 1×630 |
29.9 |
3.2 |
2.4 |
44.9 |
6990 |
3090 |
3.6/6kV 3-core XLPE insulated PVC sheathed power cable
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 3×25 |
6 |
2.5 |
2.1 |
35.8 |
1750 |
1280 |
| 3×35 |
7 |
2.5 |
2.2 |
38.1 |
2130 |
1470 |
| 3×50 |
8.3 |
2.5 |
2.3 |
41.1 |
2670 |
1740 |
| 3×70 |
9.8 |
2.5 |
2.4 |
44.5 |
3390 |
2090 |
| 3×95 |
11.5 |
2.5 |
2.5 |
48.5 |
4250 |
2470 |
| 3×120 |
12.9 |
2.5 |
2.6 |
51.7 |
5090 |
2850 |
| 3×150 |
14.5 |
2.5 |
2.8 |
55.4 |
6120 |
3310 |
| 3×185 |
16 |
2.5 |
2.9 |
58.8 |
7270 |
3800 |
| 3×240 |
18.3 |
2.6 |
3 |
64.6 |
9090 |
4600 |
| 3×300 |
20.5 |
2.8 |
3.2 |
70.6 |
11120 |
5510 |
| 3×400 |
23.5 |
3 |
3.5 |
78.4 |
15190 |
7750 |
| 3×500 |
26.7 |
3.2 |
3.7 |
86.2 |
17131 |
8045 |
| 3×630 |
29.9 |
3.2 |
4 |
94 |
21037 |
9749 |
3.6/6kV Single-core XLPE insulated steel tape armored PVC sheathed power cable YJV22 / YJLV22
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 1×25 |
6 |
2.5 |
1.8 |
21.7 |
700 |
550 |
| 1×35 |
7 |
2.5 |
1.8 |
22.6 |
820 |
610 |
| 1×50 |
8.3 |
2.5 |
1.8 |
24 |
990 |
690 |
| 1×70 |
9.8 |
2.5 |
1.8 |
25.4 |
1220 |
790 |
| 1×95 |
11.5 |
2.5 |
1.8 |
27.2 |
1490 |
920 |
| 1×120 |
12.9 |
2.5 |
1.9 |
28.7 |
1770 |
1040 |
| 1×150 |
14.5 |
2.5 |
2 |
31.7 |
2240 |
1330 |
| 1×185 |
16 |
2.5 |
2 |
33.3 |
2600 |
1480 |
| 1×240 |
18.3 |
2.6 |
2.1 |
35.9 |
3180 |
1730 |
| 1×300 |
20.5 |
2.8 |
2.2 |
38.7 |
3810 |
1990 |
| 1×400 |
23.5 |
3 |
2.3 |
42.5 |
4840 |
2420 |
| 1×500 |
26.7 |
3.2 |
2.4 |
46.3 |
5860 |
2830 |
| 1×630 |
29.9 |
3.2 |
2.6 |
50 |
7200 |
3380 |
3.6/6kV 3-core XLPE insulated steel tape armored PVC sheathed power cable YJV22 /YJLV22
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 3×25 |
6 |
2.5 |
2.3 |
40.5 |
2760 |
2300 |
| 3×35 |
7 |
2.5 |
2.3 |
43 |
3210 |
2550 |
| 3×50 |
8.3 |
2.5 |
2.4 |
46.1 |
3830 |
2890 |
| 3×70 |
9.8 |
2.5 |
2.6 |
49.7 |
4650 |
3340 |
| 3×95 |
11.5 |
2.5 |
2.7 |
53.8 |
5630 |
3850 |
| 3×120 |
12.9 |
2.5 |
2.8 |
57.2 |
6550 |
4310 |
| 3×150 |
14.5 |
2.5 |
2.9 |
60.9 |
7650 |
4840 |
| 3×185 |
16 |
2.5 |
3.1 |
64.5 |
8890 |
5430 |
| 3×240 |
18.3 |
2.6 |
3.2 |
70.5 |
10860 |
6370 |
| 3×300 |
20.5 |
2.8 |
3.4 |
76.7 |
13230 |
7610 |
| 3×400 |
23.5 |
3 |
3.8 |
86.2 |
17830 |
10440 |
| 3×500 |
26.7 |
3.2 |
4 |
94.3 |
20087 |
11256 |
| 3×630 |
29.9 |
3.2 |
4.2 |
102.4 |
23952 |
13166 |
3.6/6kV Single-core XLPE insulated steel wire armored PVC sheathed power cable YJV32/YJLV32
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 1×25 |
6 |
2.5 |
1.8 |
24.7 |
1340 |
1190 |
| 1×35 |
7 |
2.5 |
1.8 |
25.8 |
1490 |
1290 |
| 1×50 |
8.3 |
2.5 |
1.8 |
27.2 |
1720 |
1420 |
| 1×70 |
9.8 |
2.5 |
1.9 |
28.8 |
2010 |
1590 |
| 1×95 |
11.5 |
2.5 |
1.9 |
30.6 |
2350 |
1770 |
| 1×120 |
12.9 |
2.5 |
2 |
32.1 |
2680 |
1950 |
| 1×150 |
14.5 |
2.5 |
2.1 |
34.9 |
3070 |
2160 |
| 1×185 |
16 |
2.5 |
2.1 |
36.5 |
3480 |
2360 |
| 1×240 |
18.3 |
2.6 |
2.2 |
39.1 |
4140 |
2680 |
| 1×300 |
20.5 |
2.8 |
2.3 |
41.9 |
4840 |
3020 |
| 1×400 |
23.5 |
3 |
2.4 |
45.6 |
6320 |
3890 |
| 1×500 |
26.7 |
3.2 |
2.5 |
49.3 |
7470 |
4440 |
| 1×630 |
29.9 |
3.2 |
2.6 |
53.1 |
8940 |
5120 |
3.6/6kV 3-core XLPE insulated steel wire armored PVC sheathed power cable YJV32/YJLV32
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 3×25 |
6 |
2.5 |
2.3 |
42.7 |
3620 |
3160 |
| 3×35 |
7 |
2.5 |
2.4 |
46.2 |
4140 |
3490 |
| 3×50 |
8.3 |
2.5 |
2.6 |
49.3 |
4860 |
3940 |
| 3×70 |
9.8 |
2.5 |
2.7 |
52.9 |
5770 |
4480 |
| 3×95 |
11.5 |
2.5 |
2.8 |
57 |
6870 |
5120 |
| 3×120 |
12.9 |
2.5 |
2.9 |
60.4 |
7870 |
5650 |
| 3×150 |
14.5 |
2.5 |
3 |
64.2 |
9090 |
6320 |
| 3×185 |
16 |
2.5 |
3.2 |
67.8 |
10460 |
7050 |
| 3×240 |
18.3 |
2.6 |
3.4 |
75.1 |
13380 |
8940 |
| 3×300 |
20.5 |
2.8 |
3.6 |
81.3 |
15680 |
10130 |
| 3×400 |
23.5 |
3 |
3.9 |
89.5 |
19320 |
11930 |
| 3×500 |
26.7 |
3.2 |
4.1 |
97.6 |
23060 |
13820 |
| 3×630 |
29.9 |
3.2 |
4.4 |
105.7 |
27690 |
16050 |
6/6kV, 6/10kV,Single-core XLPE insulated PVC sheathed power cable YJV/YJLV
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 1×25 |
6 |
3.4 |
1.6 |
19.8 |
609 |
458 |
| 1×35 |
7 |
3.4 |
1.6 |
20.8 |
729 |
514 |
| 1×50 |
8.3 |
3.4 |
1.7 |
22.3 |
876 |
585 |
| 1×70 |
9.8 |
3.4 |
1.7 |
23.8 |
1092 |
681 |
| 1×95 |
11.5 |
3.4 |
1.8 |
25.7 |
1388 |
805 |
| 1×120 |
12.9 |
3.4 |
1.8 |
27.1 |
1651 |
913 |
| 1×150 |
14.5 |
3.4 |
1.9 |
28.9 |
1970 |
1043 |
| 1×185 |
16 |
3.4 |
1.9 |
30.4 |
2271 |
1165 |
| 1×240 |
18.3 |
3.4 |
2 |
32.9 |
2830 |
1382 |
| 1×300 |
20.5 |
3.4 |
2.1 |
35.3 |
3502 |
1642 |
| 1×400 |
23.5 |
3.4 |
2.2 |
38.5 |
4406 |
1991 |
| 1×500 |
26.7 |
3.4 |
2.3 |
42 |
5515 |
2418 |
| 1×630 |
29.9 |
3.4 |
2.4 |
45.6 |
6754 |
2883 |
| 1×800 |
33.7 |
3.4 |
2.5 |
50.5 |
8416 |
3476 |
6/6kV, 6/10kV,3-core, XLPE insulated PVC sheathed power cable YJV/YJLV
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 3×25 |
6 |
3.4 |
2.2 |
39.8 |
1927 |
1451 |
| 3×35 |
7 |
3.4 |
2.3 |
42.2 |
2316 |
1639 |
| 3×50 |
8.3 |
3.4 |
2.4 |
45.2 |
2805 |
1874 |
| 3×70 |
9.8 |
3.4 |
2.5 |
48.6 |
3497 |
2193 |
| 3×95 |
11.5 |
3.4 |
2.7 |
52.7 |
4483 |
2653 |
| 3×120 |
12.9 |
3.4 |
2.8 |
55.9 |
5340 |
3040 |
| 3×150 |
14.5 |
3.4 |
2.9 |
59.6 |
6398 |
3503 |
| 3×185 |
16 |
3.4 |
3 |
63 |
7241 |
3946 |
| 3×240 |
18.3 |
3.4 |
3.2 |
68.3 |
9324 |
4729 |
| 3×300 |
20.5 |
3.4 |
3.3 |
73.3 |
11337 |
5586 |
| 3×400 |
23.5 |
3.4 |
3.6 |
80.3 |
14174 |
6822 |
| 3×500 |
26.7 |
3.4 |
3.8 |
87.9 |
17730 |
8299 |
| 3×630 |
29.9 |
3.4 |
4.1 |
95.8 |
21736 |
9949 |
6/6kV, 6/10kV,Single-core XLPE insulated steel tape armored PVC sheathed power cable YJV22/YJLV22
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 1×25 |
6 |
3.4 |
1.8 |
23.2 |
1011 |
860 |
| 1×35 |
7 |
3.4 |
1.8 |
24.1 |
1150 |
935 |
| 1×50 |
8.3 |
3.4 |
1.8 |
25.2 |
1322 |
1031 |
| 1×70 |
9.8 |
3.4 |
1.8 |
26.8 |
1566 |
1155 |
| 1×95 |
11.5 |
3.4 |
1.9 |
28.5 |
1911 |
1328 |
| 1×120 |
12.9 |
3.4 |
2 |
30.1 |
2482 |
1745 |
| 1×150 |
14.5 |
3.4 |
2 |
31.7 |
2848 |
1921 |
| 1×185 |
16 |
3.4 |
2.1 |
33.4 |
3207 |
2101 |
| 1×240 |
18.3 |
3.4 |
2.2 |
37.1 |
3813 |
2365 |
| 1×300 |
20.5 |
3.4 |
2.2 |
39.5 |
4573 |
2715 |
| 1×400 |
23.5 |
3.4 |
2.3 |
42.7 |
5573 |
3159 |
| 1×500 |
26.7 |
3.4 |
2.5 |
46.3 |
6812 |
3715 |
| 1×630 |
29.9 |
3.4 |
2.6 |
50.2 |
8159 |
4288 |
6/6kV, 6/10kV,3-core XLPE insulated steel tape armored PVC sheathed power cable YJV22/YJLV22
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 3×25 |
6 |
3.4 |
2.4 |
44.8 |
2785 |
2322 |
| 3×35 |
7 |
3.4 |
2.5 |
47.4 |
3224 |
2569 |
| 3×50 |
8.3 |
3.4 |
2.6 |
50.4 |
3795 |
2909 |
| 3×70 |
9.8 |
3.4 |
2.7 |
54 |
4586 |
3335 |
| 3×95 |
11.5 |
3.4 |
2.8 |
57.9 |
5631 |
3857 |
| 3×120 |
12.9 |
3.4 |
2.9 |
61.3 |
6561 |
4317 |
| 3×150 |
14.5 |
3.4 |
3.1 |
65.4 |
7732 |
4911 |
| 3×185 |
16 |
3.4 |
3.2 |
68.8 |
8828 |
5460 |
| 3×240 |
18.3 |
3.4 |
3.4 |
74.3 |
10769 |
6360 |
| 3×300 |
20.5 |
3.4 |
3.6 |
80.9 |
13069 |
7406 |
| 3×400 |
23.5 |
3.4 |
3.8 |
88.1 |
16832 |
9480 |
| 3×500 |
26.7 |
3.4 |
4.1 |
95.2 |
20687 |
11256 |
| 3×630 |
29.9 |
3.4 |
4.3 |
104 |
24952 |
13165 |
6/6kV, 6/10kV,Single-core XLPE insulated steel wire armored PVC sheathed power cable YJV32/YJLV32
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 1×25 |
6 |
3.4 |
1.8 |
26.6 |
1643 |
1384 |
| 1×35 |
7 |
3.4 |
1.8 |
27.6 |
1821 |
1499 |
| 1×50 |
8.3 |
3.4 |
1.9 |
29.1 |
2027 |
1628 |
| 1×70 |
9.8 |
3.4 |
1.9 |
30.6 |
2329 |
1810 |
| 1×95 |
11.5 |
3.4 |
2 |
32.5 |
2689 |
1999 |
| 1×120 |
12.9 |
3.4 |
2 |
33.9 |
3037 |
2192 |
| 1×150 |
14.5 |
3.4 |
2.1 |
35.7 |
3419 |
2384 |
| 1×185 |
16 |
3.4 |
2.2 |
38.4 |
4147 |
2869 |
| 1×240 |
18.3 |
3.4 |
2.3 |
40.9 |
4842 |
3222 |
| 1×300 |
20.5 |
3.4 |
2.4 |
43.3 |
5637 |
3606 |
| 1×400 |
23.5 |
3.4 |
2.5 |
46.7 |
6701 |
4115 |
| 1×500 |
26.7 |
3.4 |
2.6 |
50.2 |
7992 |
4724 |
| 1×630 |
29.9 |
3.4 |
2.7 |
54 |
9457 |
5414 |
6/6kV, 6/10kV,3-core XLPE insulated steel wire armored PVC sheathed power cable YJV32/YJLV32
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 3×25 |
6 |
3.4 |
2.5 |
48 |
4229 |
3766 |
| 3×35 |
7 |
3.4 |
2.6 |
50.6 |
4771 |
4117 |
| 3×50 |
8.3 |
3.4 |
2.7 |
53.6 |
5456 |
4571 |
| 3×70 |
9.8 |
3.4 |
2.8 |
57.2 |
6352 |
5101 |
| 3×95 |
11.5 |
3.4 |
2.9 |
61.1 |
7539 |
5765 |
| 3×120 |
12.9 |
3.4 |
3 |
64.5 |
8578 |
6334 |
| 3×150 |
14.5 |
3.4 |
3.2 |
68.8 |
9901 |
7080 |
| 3×185 |
16 |
3.4 |
3.3 |
72 |
11095 |
7727 |
| 3×240 |
18.3 |
3.4 |
3.5 |
77.5 |
13254 |
8844 |
| 3×300 |
20.5 |
3.4 |
3.7 |
84.2 |
16678 |
11015 |
| 3×400 |
23.5 |
3.4 |
3.9 |
91.4 |
20051 |
12698 |
| 3×500 |
26.7 |
3.4 |
4.1 |
99.2 |
24211 |
14780 |
| 3×630 |
29.9 |
3.4 |
4.4 |
107.3 |
28839 |
17052 |
8.7/10kV,8.7/15kV,Single-core XLPE insulated PVC sheathed power cable YJV/YJLV
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 1×25 |
6 |
4.5 |
1.6 |
22 |
696 |
544 |
| 1×35 |
7 |
4.5 |
1.6 |
23 |
819 |
604 |
| 1×50 |
8.3 |
4.5 |
1.7 |
24.5 |
970 |
679 |
| 1×70 |
9.8 |
4.5 |
1.8 |
26.2 |
1191 |
780 |
| 1×95 |
11.5 |
4.5 |
1.8 |
27.9 |
1493 |
910 |
| 1×120 |
12.9 |
4.5 |
1.9 |
29.5 |
1760 |
1023 |
| 1×150 |
14.5 |
4.5 |
1.9 |
31.1 |
2085 |
1158 |
| 1×185 |
16 |
4.5 |
2 |
32.8 |
2391 |
1285 |
| 1×240 |
18.3 |
4.5 |
2.1 |
35.3 |
2973 |
1525 |
| 1×300 |
20.5 |
4.5 |
2.2 |
37.7 |
3657 |
1798 |
| 1×400 |
23.5 |
4.5 |
2.3 |
40.9 |
4571 |
2156 |
| 1×500 |
26.7 |
4.5 |
2.4 |
44.4 |
5692 |
2595 |
| 1×630 |
33.7 |
4.5 |
2.5 |
48 |
6945 |
3074 |
8.7/10kV,8.7/15kV,3-core XLPE insulated PVC sheathed power cable YJV/YJLV
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 3×25 |
6 |
4.5 |
2.4 |
45 |
2217 |
1747 |
| 3×35 |
7 |
4.5 |
2.5 |
47.3 |
2616 |
1947 |
| 3×50 |
8.3 |
4.5 |
2.6 |
50.3 |
3144 |
2223 |
| 3×70 |
9.8 |
4.5 |
2.7 |
53.8 |
3879 |
2586 |
| 3×95 |
11.5 |
4.5 |
2.8 |
57.6 |
4872 |
3051 |
| 3×120 |
12.9 |
4.5 |
2.9 |
60.9 |
5753 |
3458 |
| 3×150 |
14.5 |
4.5 |
3 |
64.5 |
6837 |
3945 |
| 3×185 |
16 |
4.5 |
3.2 |
68.1 |
7900 |
4429 |
| 3×240 |
18.3 |
4.5 |
3.3 |
73.3 |
9719 |
5230 |
| 3×300 |
20.5 |
4.5 |
3.5 |
78.4 |
11862 |
6154 |
| 3×400 |
23.5 |
4.5 |
3.7 |
85.3 |
14795 |
7402 |
| 3×500 |
26.7 |
4.5 |
4 |
93 |
18381 |
8950 |
8.7/10kV,8.7/15kV,Single-core XLPE insulated steel tape armored PVC sheathed power cable YJV22/YJLV22
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 1×25 |
6 |
4.5 |
1.8 |
25.6 |
919 |
769 |
| 1×35 |
7 |
4.5 |
1.8 |
26.6 |
1055 |
840 |
| 1×50 |
8.3 |
4.5 |
1.8 |
27.9 |
1219 |
929 |
| 1×70 |
9.8 |
4.5 |
1.9 |
30.8 |
1458 |
1047 |
| 1×95 |
11.5 |
4.5 |
2 |
32.7 |
1780 |
1197 |
| 1×120 |
12.9 |
4.5 |
2 |
34.1 |
2312 |
1575 |
| 1×150 |
14.5 |
4.5 |
2.1 |
35.9 |
2670 |
1743 |
| 1×185 |
16 |
4.5 |
2.2 |
37.6 |
3007 |
1901 |
| 1×240 |
18.3 |
4.5 |
2.2 |
39.9 |
3621 |
2173 |
| 1×300 |
20.5 |
4.5 |
2.3 |
42.5 |
4330 |
2470 |
| 1×400 |
23.5 |
4.5 |
2.4 |
45.7 |
5281 |
2866 |
| 1×500 |
26.7 |
4.5 |
2.5 |
49.4 |
6442 |
3345 |
| 1×630 |
29.9 |
4.5 |
2.7 |
53.4 |
7766 |
3895 |
8.7/10kV,8.7/15kV,3-core XLPE insulated steel tape armored PVC sheathed power cable YJV22/YJLV22
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 3×25 |
6 |
4.5 |
2.6 |
50.2 |
3201 |
2739 |
| 3×35 |
7 |
4.5 |
2.6 |
52.3 |
3646 |
2991 |
| 3×50 |
8.3 |
4.5 |
2.8 |
55.7 |
4269 |
3383 |
| 3×70 |
9.8 |
4.5 |
2.9 |
59.4 |
5082 |
3831 |
| 3×95 |
11.5 |
4.5 |
3 |
63.2 |
6159 |
4285 |
| 3×120 |
12.9 |
4.5 |
3.1 |
66.7 |
7115 |
4870 |
| 3×150 |
14.5 |
4.5 |
3.2 |
70.5 |
8296 |
5475 |
| 3×185 |
16 |
4.5 |
3.4 |
74.1 |
9429 |
6061 |
| 3×240 |
18.3 |
4.5 |
3.5 |
79.5 |
11450 |
7041 |
| 3×300 |
20.5 |
4.5 |
3.8 |
86.2 |
14508 |
8845 |
| 3×400 |
23.5 |
4.5 |
4 |
93.5 |
17695 |
10343 |
| 3×500 |
26.7 |
4.5 |
4.2 |
101.2 |
21503 |
12072 |
8.7/10kV,8.7/15kV,Single-core XLPE insulated steel wire armored PVC sheathed power cable YJV32/YJLV32
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 1×25 |
6 |
4.5 |
1.9 |
29 |
1846 |
1587 |
| 1×35 |
7 |
4.5 |
1.9 |
30 |
2026 |
1704 |
| 1×50 |
8.3 |
4.5 |
2 |
31.5 |
2237 |
1839 |
| 1×70 |
9.8 |
4.5 |
2 |
3 |
2520 |
2002 |
| 1×95 |
11.5 |
4.5 |
2.1 |
34.9 |
2911 |
2220 |
| 1×120 |
12.9 |
4.5 |
2.2 |
37.5 |
3690 |
2770 |
| 1×150 |
14.5 |
4.5 |
2.2 |
39.1 |
4005 |
2907 |
| 1×185 |
16 |
4.5 |
2.3 |
40.8 |
4402 |
3124 |
| 1×240 |
18.3 |
4.5 |
2.3 |
43.1 |
5104 |
3485 |
| 1×300 |
20.5 |
4.5 |
2.4 |
45.7 |
5908 |
3877 |
| 1×400 |
23.5 |
4.5 |
2.5 |
48.9 |
6982 |
4396 |
| 1×500 |
26.7 |
4.5 |
2.6 |
52.6 |
8287 |
5018 |
| 1×630 |
29.9 |
4.5 |
2.8 |
56.6 |
9789 |
5746 |
8.7/10kV,8.7/15kV,3-core XLPE insulated steel wire armored PVC sheathed power cable YJV32/YJLV32
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 3×25 |
6 |
4.5 |
2.7 |
53.4 |
4841 |
4378 |
| 3×35 |
7 |
4.5 |
2.8 |
55.7 |
5394 |
4740 |
| 3×50 |
8.3 |
4.5 |
2.9 |
58.9 |
6107 |
5222 |
| 3×70 |
9.8 |
4.5 |
3 |
62.6 |
7066 |
5815 |
| 3×95 |
11.5 |
4.5 |
3.1 |
66.4 |
8276 |
6501 |
| 3×120 |
12.9 |
4.5 |
3.2 |
69.9 |
9312 |
7068 |
| 3×150 |
14.5 |
4.5 |
3.3 |
73.7 |
10636 |
7814 |
| 3×185 |
16 |
4.5 |
3.5 |
77.3 |
11879 |
8510 |
| 3×240 |
18.3 |
4.5 |
3.7 |
84.2 |
15060 |
10650 |
| 3×300 |
20.5 |
4.5 |
3.9 |
89.5 |
17597 |
11934 |
| 3×400 |
23.5 |
4.5 |
4.1 |
96.8 |
21109 |
13756 |
12/20kV, Single-core XLPE insulated PVC sheathed power cable YJV/YJLV
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 1×35 |
7 |
5.5 |
1.8 |
25.4 |
930 |
720 |
| 1×50 |
8.3 |
5.5 |
1.8 |
26.8 |
1160 |
850 |
| 1×70 |
9.8 |
5.5 |
1.9 |
28.4 |
1410 |
980 |
| 1×95 |
11.5 |
5.5 |
1.9 |
30.2 |
1690 |
1110 |
| 1×120 |
12.9 |
5.5 |
2 |
31.7 |
1980 |
1240 |
| 1×150 |
14.5 |
5.5 |
2 |
33.4 |
2310 |
1380 |
| 1×185 |
16 |
5.5 |
2.1 |
35 |
2700 |
1550 |
| 1×240 |
18.3 |
5.5 |
2.2 |
37.4 |
3290 |
1800 |
| 1×300 |
20.5 |
5.5 |
2.2 |
39.8 |
3910 |
2050 |
| 1×400 |
23.5 |
5.5 |
2.3 |
43 |
5030 |
2550 |
| 1×500 |
26.7 |
5.5 |
2.5 |
46.2 |
6120 |
3030 |
| 1×630 |
29.9 |
5.5 |
2.6 |
49.8 |
7440 |
3540 |
12/20kV, 3-core XLPE insulated PVC sheathed power cable YJV/YJLV
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 3×35 |
7 |
5.5 |
2.7 |
52 |
3230 |
2570 |
| 3×50 |
8.3 |
5.5 |
2.8 |
55 |
3840 |
2900 |
| 3×70 |
9.8 |
5.5 |
2.9 |
58.4 |
4640 |
3330 |
| 3×95 |
11.5 |
5.5 |
3 |
62.3 |
5570 |
3800 |
| 3×120 |
12.9 |
5.5 |
3.1 |
65.6 |
6480 |
4240 |
| 3×150 |
14.5 |
5.5 |
3.2 |
69.2 |
7560 |
4750 |
| 3×185 |
16 |
5.5 |
3.3 |
72.7 |
8780 |
5320 |
| 3×240 |
18.3 |
5.5 |
3.5 |
78 |
10680 |
6180 |
| 3×300 |
20.5 |
5.5 |
3.7 |
83 |
12720 |
7100 |
| 3×400 |
23.5 |
5.5 |
3.9 |
90 |
16280 |
8790 |
| 3×500 |
26.7 |
5.5 |
4.1 |
96.8 |
18820 |
9580 |
12/20kV, Single-core XLPE insulated steel tape armored PVC sheathed power cable YJV22/YJLV22
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 1×25 |
6 |
5.5 |
1.9 |
27.7 |
1020 |
870 |
| 1×35 |
7 |
5.5 |
1.9 |
30.1 |
1410 |
1200 |
| 1×50 |
8.3 |
5.5 |
2 |
31.5 |
1630 |
1320 |
| 1×70 |
9.8 |
5.5 |
2 |
33.1 |
1890 |
1460 |
| 1×95 |
11.5 |
5.5 |
2.1 |
34.9 |
2210 |
1640 |
| 1×120 |
12.9 |
5.5 |
2.1 |
36.4 |
2510 |
1780 |
| 1×150 |
14.5 |
5.5 |
2.2 |
38.1 |
2880 |
1970 |
| 1×185 |
16 |
5.5 |
2.2 |
39.7 |
3270 |
2150 |
| 1×240 |
18.3 |
5.5 |
2.3 |
42.1 |
3900 |
2440 |
| 1×300 |
20.5 |
5.5 |
2.4 |
44.7 |
4590 |
2770 |
| 1×400 |
23.5 |
5.5 |
2.5 |
48.1 |
5670 |
3250 |
| 1×500 |
26.7 |
5.5 |
2.6 |
51.4 |
6760 |
3730 |
| 1×630 |
29.9 |
5.5 |
2.7 |
55.2 |
8150 |
4320 |
12/20kV, 3-core XLPE insulated steel tape armored PVC sheathed power cable YJV22/YJLV22
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 3×35 |
7 |
5.5 |
2.8 |
57.4 |
4270 |
3620 |
| 3×50 |
8.3 |
5.5 |
2.9 |
60.6 |
4930 |
4010 |
| 3×70 |
9.8 |
5.5 |
3.1 |
64.1 |
5830 |
4540 |
| 3×95 |
11.5 |
5.5 |
3.2 |
68.2 |
6850 |
5090 |
| 3×120 |
12.9 |
5.5 |
3.3 |
71.5 |
7850 |
5640 |
| 3×150 |
14.5 |
5.5 |
3.4 |
75.3 |
9040 |
6260 |
| 3×185 |
16 |
5.5 |
3.5 |
78.9 |
10300 |
6890 |
| 3×240 |
18.3 |
5.5 |
3.7 |
85.7 |
13120 |
8690 |
| 3×300 |
20.5 |
5.5 |
3.9 |
91 |
15350 |
9810 |
| 3×400 |
23.5 |
5.5 |
4.2 |
98.2 |
18940 |
11560 |
| 3×500 |
26.7 |
5.5 |
4.4 |
105.3 |
22530 |
13300 |
| 1×500 |
26.7 |
5.5 |
2.6 |
51.4 |
6760 |
3730 |
12/20kV, Single-core XLPE insulated thin steel wire armored PVC sheathed power cable YJV32/YJLV32
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 1×35 |
7 |
5.5 |
2 |
32.2 |
2030 |
1820 |
| 1×50 |
8.3 |
5.5 |
2.1 |
33.6 |
2280 |
1980 |
| 1×70 |
9.8 |
5.5 |
2.1 |
35.2 |
2580 |
2150 |
| 1×95 |
11.5 |
5.5 |
2.2 |
37 |
2950 |
2370 |
| 1×120 |
12.9 |
5.5 |
2.2 |
38.5 |
3280 |
2550 |
| 1×150 |
14.5 |
5.5 |
2.3 |
40.2 |
3680 |
2770 |
| 1×185 |
16 |
5.5 |
2.3 |
41.8 |
4110 |
2990 |
| 1×240 |
18.3 |
5.5 |
2.4 |
45.4 |
5150 |
3690 |
| 1×300 |
20.5 |
5.5 |
2.5 |
47.9 |
5930 |
4110 |
| 1×400 |
23.5 |
5.5 |
2.6 |
51.3 |
7130 |
4690 |
| 1×500 |
26.7 |
5.5 |
2.7 |
54.6 |
8320 |
5280 |
| 1×630 |
29.9 |
5.5 |
2.8 |
58.4 |
9830 |
6010 |
12/20kV, 3-core XLPE insulated steel tape armored PVC sheathed power cable YJV22/YJLV22
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 3×35 |
7 |
5.5 |
3 |
60.7 |
5970 |
5330 |
| 3×50 |
8.3 |
5.5 |
3.1 |
63.8 |
6730 |
5810 |
| 3×70 |
9.8 |
5.5 |
3.2 |
67.3 |
7720 |
6430 |
| 3×95 |
11.5 |
5.5 |
3.3 |
72.8 |
9640 |
7890 |
| 3×120 |
12.9 |
5.5 |
3.4 |
76.1 |
10800 |
8580 |
| 3×150 |
14.5 |
5.5 |
3.6 |
79.9 |
12180 |
9410 |
| 3×185 |
16 |
5.5 |
3.7 |
83.5 |
13600 |
10180 |
| 3×240 |
18.3 |
5.5 |
3.8 |
89 |
15850 |
11420 |
| 3×300 |
20.5 |
5.5 |
4 |
94.3 |
18260 |
12720 |
| 3×400 |
23.5 |
5.5 |
4.3 |
101.5 |
22100 |
14710 |
18/20kV,18/30kV, Single-core XLPE insulated PVC sheathed power cable YJV/YJLV
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 1×50 |
8.3 |
8 |
2 |
33.3 |
1560 |
1250 |
| 1×70 |
9.8 |
8 |
2.1 |
34.9 |
1840 |
1400 |
| 1×95 |
11.5 |
8 |
2.1 |
36.7 |
2140 |
1550 |
| 1×120 |
12.9 |
8 |
2.2 |
38.2 |
2450 |
1700 |
| 1×150 |
14.5 |
8 |
2.2 |
39.9 |
2790 |
1860 |
| 1×185 |
16 |
8 |
2.3 |
41.5 |
3200 |
2050 |
| 1×240 |
18.3 |
8 |
2.3 |
44 |
3800 |
2310 |
| 1×300 |
20.5 |
8 |
2.4 |
46.3 |
4460 |
2600 |
| 1×400 |
23.5 |
8 |
2.5 |
49.6 |
5530 |
3060 |
| 1×500 |
26.7 |
8 |
2.6 |
52.8 |
6160 |
3560 |
| 1×630 |
29.9 |
8 |
2.7 |
56.4 |
8020 |
4120 |
18/20kV,18/30kV, 3-core XLPE insulated PVC sheathed power cable YJV/YJLV
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 3×50 |
8.3 |
8 |
3.1 |
69 |
5290 |
4250 |
| 3×70 |
9.8 |
8 |
3.2 |
72.5 |
6240 |
4930 |
| 3×95 |
11.5 |
8 |
3.4 |
77 |
7360 |
5580 |
| 3×120 |
12.9 |
8 |
3.5 |
80 |
8350 |
6100 |
| 3×150 |
14.5 |
8 |
3.6 |
83.5 |
9520 |
6410 |
| 3×185 |
16 |
8 |
3.7 |
87 |
10830 |
7370 |
| 3×240 |
18.3 |
8 |
3.9 |
92.2 |
12810 |
8300 |
| 3×300 |
20.5 |
8 |
4 |
97.3 |
14920 |
9300 |
| 3×400 |
23.5 |
8 |
4.3 |
104.5 |
18110 |
10620 |
18/20kV,18/30kV, Single-core XLPE insulated steel tape armored PVC sheathed power cable YJV22/YJLV22
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 1×50 |
8.3 |
8 |
2.2 |
38.7 |
2060 |
1760 |
| 1×70 |
9.8 |
8 |
2.2 |
40.2 |
2340 |
1910 |
| 1×95 |
11.5 |
8 |
2.3 |
42.1 |
2680 |
2100 |
| 1×120 |
12.9 |
8 |
2.3 |
43.7 |
3020 |
2290 |
| 1×150 |
14.5 |
8 |
2.4 |
45.5 |
3400 |
2490 |
| 1×185 |
16 |
8 |
2.4 |
47 |
3810 |
2690 |
| 1×240 |
18.3 |
8 |
2.5 |
49.7 |
4490 |
3030 |
| 1×300 |
20.5 |
8 |
2.6 |
52.1 |
5180 |
3300 |
| 1×400 |
23.5 |
8 |
2.7 |
55.5 |
6310 |
3880 |
| 1×500 |
26.7 |
8 |
2.8 |
59.2 |
7430 |
4390 |
18/20kV,18/30kV, 3-core XLPE insulated steel tape armored PVC sheathed power cable YJV22/YJLV22
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 3×50 |
8.3 |
8 |
3.3 |
75.1 |
7200 |
6250 |
| 3×70 |
9.8 |
8 |
3.5 |
78.7 |
8230 |
6910 |
| 3×95 |
11.5 |
8 |
3.6 |
84 |
9430 |
7620 |
| 3×120 |
12.9 |
8 |
3.8 |
87.5 |
11120 |
8870 |
| 3×150 |
14.5 |
8 |
3.9 |
91.3 |
12400 |
9580 |
| 3×185 |
16 |
8 |
4 |
94.9 |
13910 |
10450 |
| 3×240 |
18.3 |
8 |
4.2 |
100.3 |
16080 |
11590 |
| 3×300 |
20.5 |
8 |
4.3 |
105.6 |
18500 |
12850 |
18/20kV,18/30kV, Single-core XLPE insulated steel wire armored PVC sheathed power cable YJV32/YJLV32
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 1×50 |
8.3 |
8 |
2.2 |
41.5 |
2910 |
2610 |
| 1×70 |
9.8 |
8 |
2.3 |
43.4 |
3240 |
2820 |
| 1×95 |
11.5 |
8 |
2.3 |
45.1 |
3610 |
3030 |
| 1×120 |
12.9 |
8 |
2.4 |
46.9 |
4370 |
3640 |
| 1×150 |
14.5 |
8 |
2.5 |
48.7 |
4810 |
3900 |
| 1×185 |
16 |
8 |
2.5 |
50.2 |
5270 |
4150 |
| 1×240 |
18.3 |
8 |
2.6 |
52.9 |
6040 |
4580 |
| 1×300 |
20.5 |
8 |
2.7 |
56.3 |
6810 |
4990 |
| 1×400 |
23.5 |
8 |
2.8 |
59.7 |
8050 |
5620 |
18/20kV,18/30kV, 3-core XLPE insulated steel wire armored PVC sheathed power cable YJV32/YJLV32
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 3×50 |
8.3 |
8 |
3.5 |
79.7 |
9790 |
8870 |
| 3×70 |
9.8 |
8 |
3.6 |
83.3 |
10900 |
9610 |
| 3×95 |
11.5 |
8 |
3.7 |
87.4 |
12220 |
10470 |
| 3×120 |
12.9 |
8 |
3.9 |
90.8 |
13440 |
11220 |
| 3×150 |
14.5 |
8 |
4 |
94.6 |
14880 |
12100 |
| 3×185 |
16 |
8 |
4.1 |
98.2 |
16420 |
12990 |
| 3×240 |
18.3 |
8 |
4.3 |
103.7 |
18770 |
14340 |
26/35kV, Single-core XLPE insulated PVC sheathed power cable YJV/YJLV
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 1×50 |
8.3 |
10.5 |
2.2 |
38.7 |
1727 |
1437 |
| 1×70 |
9.8 |
10.5 |
2.2 |
40.2 |
1980 |
1570 |
| 1×95 |
11.5 |
10.5 |
2.3 |
42.1 |
2335 |
1750 |
| 1×120 |
12.9 |
10.5 |
2.4 |
43.7 |
2650 |
1910 |
| 1×150 |
14.5 |
10.5 |
2.4 |
45.3 |
3016 |
2090 |
| 1×185 |
16 |
10.5 |
2.5 |
47 |
3377 |
2270 |
| 1×240 |
18.3 |
10.5 |
2.5 |
49.3 |
3996 |
2550 |
| 1×300 |
20.5 |
10.5 |
2.6 |
51.7 |
4733 |
2870 |
| 1×400 |
23.5 |
10.5 |
2.7 |
54.9 |
5723 |
3308 |
| 1×500 |
26.7 |
10.5 |
2.8 |
59.8 |
7068 |
3970 |
| 1×630 |
29.9 |
10.5 |
3 |
63.6 |
8418 |
4550 |
26/35kV, 3-core XLPE insulated PVC sheathed power cable YJV/YJLV
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 3×50 |
8.3 |
10.5 |
3.6 |
80.8 |
6030 |
5150 |
| 3×70 |
9.8 |
10.5 |
3.7 |
84.2 |
6900 |
5650 |
| 3×95 |
11.5 |
10.5 |
3.8 |
88.1 |
8060 |
6282 |
| 3×120 |
12.9 |
10.5 |
3.9 |
91.3 |
9070 |
6830 |
| 3×150 |
14.5 |
10.5 |
4 |
94.9 |
10290 |
7470 |
| 3×185 |
16 |
10.5 |
4.1 |
98.4 |
11490 |
8120 |
| 3×240 |
18.3 |
10.5 |
4.2 |
103.5 |
13550 |
9140 |
| 3×300 |
20.5 |
10.5 |
4.4 |
108.7 |
15950 |
10290 |
| 3×400 |
23.5 |
10.5 |
4.6 |
115.5 |
19180 |
11830 |
26/35kV, Single-core XLPE insulated steel tape armored PVC sheathed power cable YJV22/YJLV22
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 1×50 |
8.3 |
10.5 |
2.4 |
43.7 |
2600 |
2320 |
| 1×70 |
9.8 |
10.5 |
2.4 |
45.2 |
2890 |
2480 |
| 1×95 |
11.5 |
10.5 |
2.5 |
47.1 |
3270 |
2690 |
| 1×120 |
12.9 |
10.5 |
2.5 |
48.7 |
3600 |
2860 |
| 1×150 |
14.5 |
10.5 |
2.6 |
50.5 |
4020 |
3090 |
| 1×185 |
16 |
10.5 |
2.6 |
52 |
4410 |
3305 |
| 1×240 |
18.3 |
10.5 |
2.7 |
54.7 |
5110 |
3660 |
| 1×300 |
20.5 |
10.5 |
2.8 |
57.1 |
5900 |
4040 |
| 1×400 |
23.5 |
10.5 |
2.9 |
60.5 |
6340 |
4520 |
| 1×500 |
26.7 |
10.5 |
3 |
65.5 |
8380 |
5290 |
26/35kV, 3-core XLPE insulated steel tape armored PVC sheathed power cable YJV22/YJLV22
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 3×50 |
8.3 |
10.5 |
3.8 |
88.6 |
8700 |
7820 |
| 3×70 |
9.8 |
10.5 |
3.9 |
92 |
9690 |
8430 |
| 3×95 |
11.5 |
10.5 |
4.1 |
86.3 |
11050 |
9270 |
| 3×120 |
12.9 |
10.5 |
4.2 |
99.7 |
12210 |
9970 |
| 3×150 |
14.5 |
10.5 |
4.3 |
103.3 |
13560 |
10730 |
| 3×185 |
16 |
10.5 |
4.4 |
107 |
14880 |
11500 |
| 3×240 |
18.3 |
10.5 |
4.6 |
112.5 |
17210 |
12800 |
| 3×300 |
20.5 |
10.5 |
4.7 |
117.7 |
19760 |
14100 |
26/35kV, Single-core XLPE insulated steel wire armored PVC sheathed power cable YJV32/YJLV32
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 1×50 |
8.3 |
10.5 |
2.5 |
46.9 |
4030 |
3490 |
| 1×70 |
9.8 |
10.5 |
2.5 |
48.4 |
4380 |
3710 |
| 1×95 |
11.5 |
10.5 |
2.6 |
50.3 |
4830 |
3990 |
| 1×120 |
12.9 |
10.5 |
2.6 |
51.9 |
5250 |
4260 |
| 1×150 |
14.5 |
10.5 |
2.7 |
53.7 |
5730 |
4540 |
| 1×185 |
16 |
10.5 |
2.7 |
55.2 |
6160 |
4790 |
| 1×240 |
18.3 |
10.5 |
2.8 |
57.9 |
6940 |
5230 |
| 1×300 |
20.5 |
10.5 |
2.9 |
60.3 |
7810 |
5690 |
| 1×400 |
23.5 |
10.5 |
3 |
63.7 |
8990 |
6310 |
26/35kV, 3-core XLPE insulated steel wire armored PVC sheathed power cable YJV32/YJLV32
| Normal Cross-section |
OD.of Conductor |
Normal Thickness of Insulation |
Normal Thickness of Sheath |
Approx. OD. |
Approx. Weight |
| kg/km |
| mm2 |
mm |
mm |
mm |
mm |
CU |
AL |
| 3×50 |
8.3 |
10.5 |
3.9 |
91.9 |
12620 |
11740 |
| 3×70 |
9.8 |
10.5 |
4.1 |
95.5 |
13820 |
12560 |
| 3×95 |
11.5 |
10.5 |
4.2 |
99.6 |
15360 |
13590 |
| 3×120 |
12.9 |
10.5 |
4.3 |
103 |
16700 |
14460 |
| 3×150 |
14.5 |
10.5 |
4.4 |
106.6 |
18280 |
15460 |
