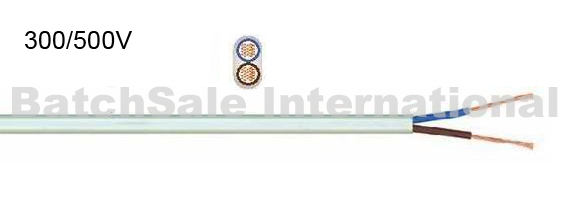

H05VVH2-F PVC Wire
H05VVH2-F PVC Wire, PVC cable, control cable, power control cable

Code: H05VVH2-F
Standards: TS 9760, IEC 227, VDE 0281,BS 6500
Construction:
  1- Flexible Copper Conductor
  2- PVC insulation
  3- PVC outer sheath
Application:
  In dry. damp and wet locations as flexible connecting cables for light mechanical stresses.
  It is used for hand tools and house hold appliances with flat shape.
Technical Data :
  Max. operating temperature 70 ℃
  Short circuit temperature 160 ℃

Num. of Cores
and Nominal Cross Section		 No. of Wires & Diameter Thickness of Insulation Approx. Overall Diameter Conductor DC Resistance at 20℃ Approx. Total Weight Max. Current Carrying Capacity at 30℃
No.×mm2 No.×mm min max max.mm Ω/km kg/km Pip A Air A
2 × 0.75 22 × 0.20 0.6 0.8 4.00 × 6.40 26.0 37.0 - 13
2 × 1 30 × 0.20 0.6 0.8 4.10 × 6.60 19.5 61.1 12 16
2 × 1.5 27 × 0.25 0.7 0.8 4.60 × 7.60 13.3 85.0 16 20
2 × 2.5 45 × 0.25 0.8 1.0 5.70 × 9.40 7.98 128 21 27
2 × 4 50 × 0.30 0.8 1.1 6.40 × 10.6 4.95 185 27 36
3 × 0.75 22 × 0.20 0.6 0.8 4.00 × 8.80 26.0 65.0 - 13
3 × 1 30 × 0.20 0.6 0.8 4.10 × 9.10 19.5 77.0 12 16
3 × 1.5 27 × 0.25 0.7 0.9 4.70 × 10.50 13.3 104 16 20
3 × 2.5 45 × 0.25 0.8 1.1 5.90 × 13.30 7.98 159 21 27
3 × 4 50 × 0.30 0.8 1.2 6.60 × 15.60 4.95 228 27 36
