H05V2V2-F PVC Wire
H05VV-F PVC Wire, PVC cable, control cable, power control cable

Code: H05V2V2-F
Standards: TS 9760, IEC 227, VDE 0281, BS 6500

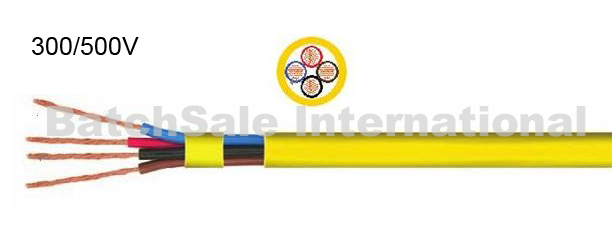

Construction:
  1- Flexible Copper Conductor
  2- PVC insulation
  3- PVC Outer Sheath
Application:
  In dry, damp and wet locations as flexible connecting cables for light mechanical stresses. It is used for hand tools. heat tools and house hold appliances with flat shape.
Technical Data :
  Max. operating temperature 90 ℃
  Short circuit temperature 160 ℃

Num. of Cores and Nominal Cross Section No. of Wires & Diameter Thickness of Insulation Thickness of Sheath Mean Overall Diameter Conductor DC Resistance at 20℃ Approx. Total Weight Max. Current Carrying Capacity at 30℃
No.×mm2 No.×mm mm mm min max Ω/km kg/km Air A
 2 × 0.75    22 × 0.20    0.6    0.8    5.7    7.2    26.0    57.0    8
 2 × 1    30 × 0.20    0.6    0.8    5.9    7.5    19.5    64.1    12
 2 × 1.5    27 × 0.25    0.7    0.8    6.8    8.6    13.3    91.0    18
 2 × 2.5    45 × 0.25    0.8    1.0    8.4    10.6    7.98    135    26
 2 × 4    50 × 0.30    0.8    1.1    9.7    12.1    4.95    189    32
 2 × 6    75 × 0.30    0.8    1.1    11.8    13.1    3.30    274    42
 2 × 10    73 × 0.40    0.9    1.2    14.6    15.8    1.91    422    70
 3 × 0.75    22 × 0.20    0.6    0.8    6.0    7.6    26.0    68.1    8
 3 × 1    30 × 0.20    0.6    0.8    6.3    8.0    19.5    77.0    12
 3 × 1.5    27 × 0.25    0.7    0.9    7.4    9.4    13.3    109    18
 3 × 2.5    45 × 0.25    0.8    1.1    9.2    11.4    7.98    169    26
 3 × 4    50 × 0.30    0.8    1.2    10.5    13.1    4.95    238    32
 3 × 6    75 × 0.30    0.8    1.1    12.5    14.2    3.30    343    42
 3 × 10    73 × 0.40    0.9    1.2    15.8    17.2    1.91    538    70
 4 × 0.75    22 × 0.20    0.6    0.8    6.6    8.3    26.0    85.0    8
 4 × 1    30 × 0.20    0.6    0.8    7.1    9.0    19.5    98.0    12
 4 × 1.5    27 × 0.25    0.7    0.8    8.4    10.5    13.3    145    18
 4 × 2.5    45 × 0.25    0.8    1.1    11    12.5    7.98    213    26
 4 × 4    50 × 0.30    0.8    1.2    11.5    14.3    4.95    306    32
 4 × 6    75 × 0.30    0.8    1.3    13.6    15.2    3.30    427    42
 4 × 10    73 × 0.40    0.9    1.4    17.2    18.3    1.91    674    70
 4 × 16    119 × 0.40    0.9    1.5    19.4    20.8    1.21    972    80
 5 × 0.75    22 × 0.20    0.6    0.8    7.4    9.3    26.0    101    8
 5 × 1    30 × 0.20    0.6    0.9    7.8    9.8    19.5    125    12
 5 × 1.5    27 × 0.25    0.7    1.0    9.3    11.6    13.3    176    18
 5 × 2.5    45 × 0.25    0.8    1.1    11.2    13.9    7.98    261    26
 5 × 4    50 × 0.30    0.8    1.3    13.0    16.1    4.95    375    32
 5 × 6    75 × 0.30    0.8    1.4    15.6    16.8    3.30    524    42
 5 × 10    73 × 0.40    0.9    1.5    18.2    20.3    1.91    831    70
