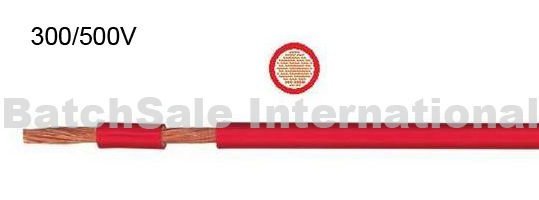

H05V2-K PVC Wire
H05V2-K PVC Wire, PVC cable, control cable, power control cable

Code: H05V2-K
Standards: TS 9758, IEC 227, VDE 0281, BS 6004
Construction:
  1- Flexible Copper Conductor
  2- PVC insulation
Application:
  For protected installation in equipment and lighting fitting.
  Also for in conduit. on and under plaster.
Technical Data :
  Max. operating temperature 90 ℃
  Short circuit temperature 160 ℃

Nominal Cross Section No. of Wires & Diameter Thickness of Insulation Approx. Overall Diameter Conductor DC Resistance at 20℃ Approx. Total Weight Max. Current Carrying Capacity at 30℃
mm2 No.×mm mm min max Ω/km kg/km Pip A Air A
 0.5    15 × 0.20    0.6    2.1    2.5    39.0    10.0    -   -
 0.75    22 × 0.20    0.6    2.2    2.7    26.0    12.0    -   16
 1    30 × 0.20    0.6    2.4    2.8    19.5    15.0    12    20
