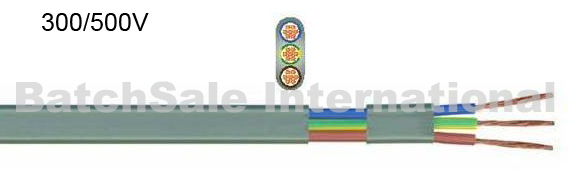

PVC Flat Twin-Core & Three-Core Cable

Code:PVC Flat Twin-Core & Three-Core Cable
Standards: BS6004
Construction:
  1- Stranded Copper Conductor
  2- PVC insulation
  3- PVC Outer Sheath
Application:
  These Cables are used in dry or damp locations for fixed installation. Suitable for installation in walls or embedded in plaster.
Technical Data :
  Max. operating temperature 70 ℃
  Short circuit temperature 160 ℃

Num. of Cores and Nominal Cross Section	No. of Wires & Diameter	Thickness of Insulation	Thickness of Sheath	Conductor DC Resistance at 20℃	Approx. Total Weight	Max. Current Carrying Capacity at 30℃
No.×mm²	No.×mm	mm	mm	Ω/km	kg/km	Pip A	Air A
2 × 1.5	7 × 0.51	0.7	0.9	12.1	76..0	32	20
2 × 2.5	7 × 0.66	0.8	1.0	7.41	110	42	27
2 × 4	7 × 0.83	0.8	1.0	4.61	148	54	37
3 × 1.5	7 × 0.51	0.7	0.9	12.1	102	26	18
3 × 2.5	7 × 0.66	0.8	1.0	7.41	152	34	25
3 × 4	7 × 0.83	0.8	1.1	4.61	224	44	34
