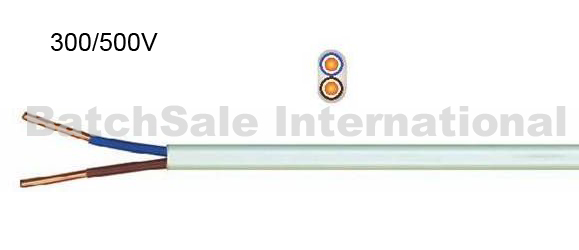

PVC Flat Cable
PVC Flat Cable, PVC cable, control cable, power control cable

Code: Flat Cable
Standards: TS 9760, IEC 227, VDE 0281, BS 6500
Construction:
  1- Solid Copper Conductor
  2- PVC insulation
  3- PVC Outer Sheath
Application:
  Preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation, with additional protection where mechanical damage is unexpected.
Technical Data :
  Max. operating temperature 70 ℃
  Short circuit temperature 160 ℃

Num. of Cores and Nominal Cross Section No. of Wires & Diameter Thickness of Insulation Thickness of Sheath Conductor DC Resistance at 20℃ Approx. Total Weight Max. Current Carrying Capacity at 30℃
No.×mm2 No.×mm mm mm Ω/km kg/km Pip A Air A
 2 × 1    1.1    0.6    0.8    18.1    50.0    -   19
 2 × 1.5    1.35    0.7    0.8    12.1    66.0    32    20
 2 × 2.5    1.73    0.8    1.0    7.41    104    42    20
 2 × 4    2.19    0.8    1.1    4.61    143    54    20
 3 × 1    1.1    0.6    0.8    18.1    73.0    -   20
 3 × 1.5    1.35    0.7    0.9    12.1    101    26    20
 3 × 2.5    1.73    0.8    1.1    7.41    158    34    20
 3 × 4    2.19    0.8    1.2    4.61    216    44    20
