Fire-Resistant Cable

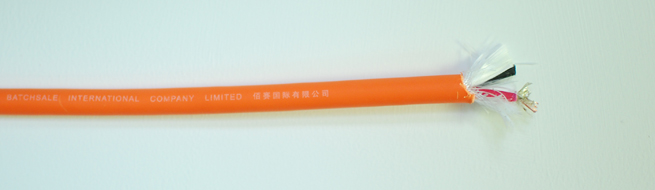

1. Fire Resistant PVC Cable
 |
| This series of cable can endure at most 3 hours exposure to direct flame. It's applicable for environment with high fireproof requirement, such as sky-scraper, oil field, power plant, mine, subway, chemical plant, etc. |

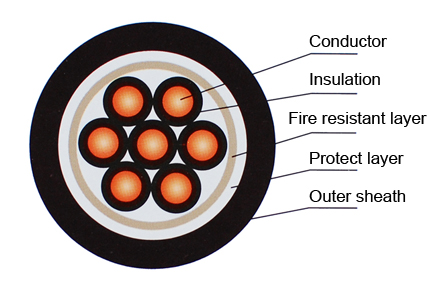

1.1 PVC Insulated PVC Sheathed Fire Resistant Control Cable
Working Condition:
1. Rated Voltage (U0/U): V Series - 600/1000V; K Series - 450/750V; B Series - 450/750V
2. Maximal long-term service temperature:
| Fire resistant PVF insulated and sheathed | - 2 kinds, 70ºC and 105ºC |
| Crosslinking polyethylene insulated | - 90ºC |
| Fluoroplastic insulated and sheathed | - 2 kinds, 220ºC and 260ºC |
| Fluoroplastic insulated and fire resistant PVF sheathed | - 2 kinds, 90ºC and 125ºC |
| Low halogen, low smoke, fire resistant PVC insulated and sheathed | - 70ºC |
| Zero halogen, low smoke, fire resistant PVF insulated and sheathed | - 2 kinds, 90ºC and 125ºC |
| Silicon rubber insulated and sheathed | - 220ºC∼280ºC |
3. Minimal working temperature:
Fire resistant PVF insulated and sheathed: -40ºC for fixed installation and -15ºC for unfixed installation
Fluoroplastic insulated and sheathed: -60ºC for fixed installation and -20ºC for unfixed installation
4. Installation temperature - no less than 0ºC
5. Bending Radius:
Unarmoured, braid shielded cable - no less than 6×EDΦ
Armoured, steel belt shielded cable - no less than 12×EDΦ
Fluoro plastic insulated and sheathed cable - no less than 8×EDΦ
6. Fire-Resistant Properties - According to IEC331 standard
| Flame temperature 750°C | Flame temperature 950∼1000°C | Flame temperature 750∼800°C |
| Endurable 3 hours | Endurable 90 minutes | Endurable 90 minutes |
| Under rated voltage | Under rated voltage | Under rated voltage |
| Under 3A current | Under 3A current | Under 3A current |
| Fire Resistant Class A | Fire Resistant Class B | |
| Type | Description |
| NH-VV | Copper conductor PVC insulated PVC sheathed fire resistant power cable |
| NH-VV22 | Copper conductor PVC insulated PVC sheathed steel tape armoured fire resistant power cable |
| NH-KVV | Copper conductor PVC insulated PVC sheathed fire resistant control cable |
| NH-KVVR | Copper conductor PVC insulated PVC sheathed fire resistant soft control cable |
| NH-KVVP | Copper conductor PVC insulated PVC sheathed copper wire braid screened fire resistant control cable |
| NH-KVVRP | Copper conductor PVC insulated PVC sheathed copper wire braid screened fire resistant soft control cable |
| NH-KVV22 | Copper conductor PVC insulated PVC sheathed steel tape armoured fire resistant control cable |
| NH-BVV | Copper conductor PVC insulated fire resistant cable |
| NH-BVV22 | Copper conductor PVC insulated PVC sheathed round cable |
| NH-BVV22 | Copper conductor PVC insulated PVC sheathed round cable |
1.2 Low Smoke Halogen Free (LSOH) PVC Insulated PVC Sheathed Fire Resistant Control Cable
Fire Resistant Character1- Work as usual when directly exposed to 750∼850°C flame for 1.5 hours.
2- Smoke density no more than 300.
3- Released hydrogen chloride is no more than 125mg/g.
| Type | Description |
| NHB-KVV | LSOH PVC insulated PVC sheathed fire resistant control cable |
| NHB-KVVP | LSOH PVC insulated PVC sheathed copper wire braid screened fire resistant control cable |
| NHB-KVV2 | LSOH PVC insulated PVC sheathed copper tape screened fire resistant control cable |
| NHB-KVV22 | LSOH PVC insulated PVC sheathed steel tape screened fire resistant control cable |
| NHB-KVV32 | LSOH PVC insulated PVC sheathed steel wire screened fire resistant control cable |
| NHB-KVVR | LSOH PVC insulated PVC sheathed fire resistant soft control cable |
| NHB-KVVRP | LSOH PVC insulated PVC sheathed copper wire braid screened fire resistant soft control cable |
1.3 Low Smoke Halogen Free (LSOH) PVC Insulated PVC Sheathed Fire Retardant Control Cable
| Type | Description |
| ZRB-KVV | LSOH PVC insulated PVC sheathed fire retardant control cable |
| ZRB-KVVP | LSOH PVC insulated PVC sheathed copper wire braid screened fire retardant control cable |
| ZRB-KVV2 | LSOH PVC insulated PVC sheathed copper tape screened fire retardant control cable |
| ZRB-KVV22 | LSOH PVC insulated PVC sheathed steel tape screened fire retardant control cable |
| ZRB-KVV32 | LSOH PVC insulated PVC sheathed steel wire screened fire retardant control cable |
| ZRB-KVVR | LSOH PVC insulated PVC sheathed fire retardant soft control cable |
| ZRB-KVVRP | LSOH PVC insulated PVC sheathed copper wire braid screened fire retardant soft control cable |

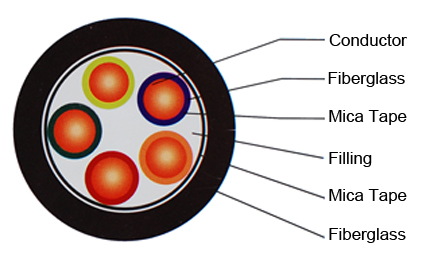

2. Mica Tape Insulated Fiberglass Braid Sheathed Fire Resistant High Temperature Resistant Cable
Application: High temperature industry environment.
Conductor: Copper wire, nickle-plated copper wire or nickle wire, Φ0.5∼10mm2.
Rated Voltage: 450/750V.
Fire Resistant Character: Endurable 90 minutes in 1000°C flame.
Rated Temperature: Type GN500—500°C; Type GN1000—300∼1000°C.
Long term working temperature: 3 classes—300°C; 500°C; 800°C;
| Type | Nominal Cross-section Area | No. of Wires & Diameter | Weight |
| mm2 | No.×mm | kg/km | |
| GN500-01 Copper Wire GN500-02 Nickle-plated Copper Wire GN500-03 Nickle wire |
0.5 | 4×0.41, 1×0.8, 7×0.3 | 11.4 |
| 1 | 7×0.41, 1×1.0, 19×0.26 | 15.7 | |
| 1.5 | 11×0.41, 1×1.3,19×0.32 | 18.8 | |
| 2 | 15×0.41, 19×0.37 | 25.8 | |
| 2.5 | 1×1.28, 19×0.41 | 31.5 | |
| 4 | 20×0.50, 1×2.24, 19×0.52 | 45.4 | |
| 6 | 30×0.50, 1×2.76, 49×0.4 | 68.8 | |
| 10 | 49×0.50, 7×12×0.4, 84×0.4 | 105.3 | |
| 16 | 84×0.50, 7×19×0.4, 126×0.4 | 163 | |
| 25 | 189×0.41, 49×0.80 | ||
| 35 | 276×0.4 | ||
| 50 | 396×0.4 | ||
| 70 | 360×0.5 | ||
| 95 | 475×0.5 | ||
| 120 | 616×0.5 |
|
||||
