1. XLPE/PVC/STA/PVC Armored Power Cable 0.6/1kV

Code : YJV22 (copper), YJLV22 (aluminum)
Standard : IEC 60502. GB/T 12706-2002
Construction :
  1- Solid or Stranded Copper Conductor
  2- XLPE insulation (cross-linked PE).
  3- PVC Inner Sheath
  4- Steel Tape Armor
  5- PVC outer sheath
Application :
  Preferably for installation indoors. in cable ducts and in industrial plants or switching stations. under ground installation with additional protection where mechanical damage is unexpected.
Technical Data :
  Max. operating temperature 90℃
  Short circuit temperature 250℃
Constroction of Cable :

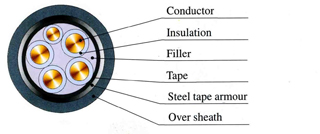

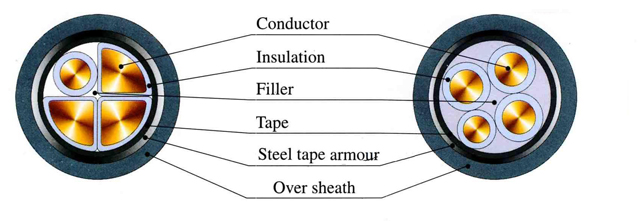

0.6/1kV, 1-core Steel Tape Armored power cable	0.6/1kV, 4-core Steel Tape Armored power cable
0.6/1kV, 2-core Steel Tape Armored power cable 0.6/1kV, 5-core Steel Tape Armored power cable
0.6/1kV, 3-core Steel Tape Armored power cable

0.6/1kV, Single-core XLPE Insulated Steel Tape Armored PVC Sheathed power cable YJV22,YJLV22

Normal Cross-section	OD. of Conductor	Normal Thickness of Insulation	Normal Thickness of Sheath	Approx. OD.	Approx. Weight
					kg/km
mm2	mm	mm	mm	mm	CU	AL
1×10	4.1	1	1.8	11.7	233.3	170.1
1×16	5.1	1	1.8	12.7	305.8	205.8
1×25	6.4	1.2	1.8	14.4	426.4	267.7
1×35	7.6	1.2	1.8	15.6	536.2	316.1
1×50	8.3	1.4	1.8	16.5	657.6	367.3
1×70	9.8	1.4	1.8	18.2	864.3	454.1
1×95	11.5	1.6	1.8	19.9	1143	561.3
1×120	12.9	1.6	1.8	21.5	1400	663.7
1×150	14.5	1.8	1.8	23.5	1721	795.9
1×185	16	2	1.8	25.4	2020	915.6
1×240	18.3	2.2	1.8	27.9	2567	1121
1×300	20.5	2.4	1.9	30.5	3225	1369
1×400	23.5	2.6	2	35.9	4461	2050
1×500	26.5	2.8	2.1	39.5	5584	2492
1×630	29.9	2.8	2.3	43.7	6878	3031

0.6/1kV, 2-core XLPE Insulated Steel Tape Armored PVC Sheathed power cable YJV22,YJLV22

Normal Cross-section	OD. of Conductor	Normal Thickness of Insulation	Normal Thickness of Sheath	Approx. OD.	Approx. Weight
					kg/km
mm2	mm	mm	mm	mm	CU	AL
2×4	2.2	0.7	1.8	13.5	265.3	215.6
2×6	2.8	0.7	1.8	14.5	325.4	250
2×10	4.1	0.7	1.8	17.1	447	318.8
2×16	5.1	0.7	1.8	19.2	602.1	398.7
2×25	6.4	0.9	1.8	22.6	863	540.7
2×35	7.6	0.9	1.8	24.9	1099	651.7
2×50	5.6	1	1.8	21.4	1199	638.8
2×70	6.7	1.1	1.9	24.2	1640	830.4
2×95	8.1	1.1	2	29	2437	1314
2×120	9	1.2	2.1	31.4	2966	1549
2×150	11.7	1.4	2.3	38	3699	1950
2×185	12	1.6	2.4	39.6	4435	2246

0.6/1kV, 3-core XLPE Insulated Steel Tape Armored PVC Sheathed power cable YJV22,YJLV22

Normal Cross-section	OD. of Conductor	Normal Thickness of Insulation	Normal Thickness of Sheath	Approx. OD.	Approx. Weight
					kg/km
mm2	mm	mm	mm	mm	CU	AL
3×4	2.2	0.7	1.8	14	316.5	242
3×6	2.8	0.7	1.8	15.2	397.2	284.1
3×10	4.1	0.7	1.8	17.9	560.9	368.5
3×16	5.1	0.7	1.8	20.2	773.3	468.2
3×25	6.4	0.9	1.8	23.9	1130	646.2
3×35	7.6	0.9	1.8	26.4	1458	787.9
3×50	5.6	1	1.8	25.5	1714	873.3
3×70	6.7	1.1	2	31.3	2663	1449
3×95	8.1	1.1	2.1	34.7	3480	1794
3×120	9	1.2	2.2	37.9	4269	2143
3×150	11.7	1.4	2.4	42.2	5216	2592
3×185	12	1.6	2.5	45.9	6360	3077
3×240	15.9	1.7	2.7	51.1	8120	3806
3×300	17.8	1.8	2.9	55.9	9981	4567

0.6/1kV,3+1-core XLPE Insulated Steel Tape Armored PVC Sheathed power cable YJV22,YJLV22

Normal Cross-section	OD. of Conductor	Normal Thickness of Insulation	Normal Thickness of Sheath	Approx. OD.	Approx. Weight
					kg/km
mm2	mm	mm	mm	mm	CU	AL
3×10+1×6	4.1	0.7	1.8	18.6	632.4	402.5
	2.8	0.7
3×16+1×10	5.1	0.9	1.8	21.2	893.6	524.4
	4.1	0.7
3×25+1×16	6.4	0.9	1.8	25	1306	720.4
	5.1	0.7
3×35+1×16	7.6	0.9	1.8	27	1624	851.8
	5.1	0.7
3×50+1×25	7.4	1	1.8	28	2036	1034
	6.4	0.9
3×70+1×35	9.5	1.1	1.9	35.4	3158	1721
	7.6	0.9
3×95+1×50	11.2	1.1	2.1	39.6	4125	2136
	8.9	1
3×120+1×70	12.6	1.2	2.3	43.4	5143	2579
	10.7	1.1
3×150+1×70	13.9	1.4	2.4	47.5	6087	3026
	10.7	1.1
3×185+1×95	15.3	1.6	2.6	52.1	7516	3627
	12.6	1.1
3×240+1×120	17.4	1.7	2.8	57.6	9527	4447
	14.2	1.2

0.6/1kV, 4-core XLPE Insulated Steel Tape Armored PVC Sheathed power cable YJV22,YJLV22

Normal Cross-section	OD. of Conductor	Normal Thickness of Insulation	Normal Thickness of Sheath	Approx. OD.	Approx. Weight
					kg/km
mm2	mm	mm	mm	mm	CU	AL
4×4	2.2	0.7	1.8	15	377.2	277.8
4×6	2.8	0.7	1.8	16.3	480.2	329.3
4×10	4.1	0.7	1.8	19.4	690.1	433.6
4×16	5.1	0.7	1.8	21.9	964.2	557.4
4×25	6.4	0.9	1.8	26.1	1424	779.1
4×35	7.6	0.9	1.8	28.9	1851	957.4
4×50	5.6	1	1.8	30	2512	1391
4×70	6.7	1.1	1.9	35.3	3443	1824
4×95	8.1	1.1	2	39.3	4511	2264
4×120	9	1.2	2.1	43.3	5560	2725
4×150	11.7	1.4	2.3	47.4	6747	3249
4×185	12	1.6	2.4	52	8265	3886
4×240	15.9	1.7	2.6	57.3	10514	4761
4×300	17.8	1.8	2.8	63.5	12996	5778

0.6/1kV, 5-core XLPE Insulated Steel Tape Armored PVC Sheathed power cable YJV22,YJLV22

Normal Cross-section	OD. of Conductor	Normal Thickness of Insulation	Normal Thickness of Sheath	Approx. OD.	Approx. Weight
					kg/km
mm2	mm	mm	mm	mm	CU	AL
5×6	2.8	1	1.8	17.4	565.6	377
5×10	4.1	1	1.8	20.9	839.8	519.2
5×16	5.1	1	1.8	23.8	1180	671.1
5×25	6.4	1.2	1.8	28.4	1749	943.5
5×35	7.6	1.2	2	32.5	2318	1201
5×50	8.3	1.4	2.1	36.4	3314	1841
5×70	9.8	1.4	2.2	41.2	4414	2332
5×95	11.5	1.6	2.4	46.2	5906	2953
5×120	12.9	1.6	2.5	50.7	7271	3536
5×150	14.5	1.8	2.7	56.5	9012	4317
5×185	16	2	2.9	58	10436	4831
5×240	18.3	2.2	3.1	69.2	13596	6258
5×300	20.5	2.4	3.3	76.1	17049	7627

0.6/1kV, 4+1-core XLPE Insulated Steel Tape Armored PVC Sheathed power cable YJV22,YJLV22

Normal Cross-section	OD. of Conductor	Normal Thickness of Insulation	Normal Thickness of Sheath	Approx. OD.	Approx. Weight
					kg/km
mm2	mm	mm	mm	mm	CU	AL
4×10+1×6	4.1	0.7	1.8	20.2	767.8	473.7
	2.8	0.7
4×16+1×10	5.1	0.9	1.8	23.2	1092	621.1
	4.1	0.7
4×25+1×16	6.4	0.9	1.8	27.5	1611	864.3
	5.1	0.7
4×35+1×16	7.6	0.9	1.8	30.1	2012	1049
	5.1	0.7
4×50+1×25	8.3	1	2	34.9	2961	1627
	6	0.9
4×70+1×35	9.8	1.1	2.1	39.3	3941	2058
	7	0.9
4×95+1×50	11.5	1.1	2.3	44.2	5274	2614
	8.3	1
4×120+1×70	12.9	1.2	2.5	48.9	6596	3192
	9.8	1.2
4×150+1×70	14.5	1.4	2.6	53.4	7955	3782
	9.8	1.1
4×185+1×95	16	1.6	2.8	58.9	9552	4477
	11.5	1.1
4×240+1×120	18.3	1.7	3	65.5	12157	5541
	12.9	1.2

2. XLPE/PVC/SWA/PVC Armored Power Cable 0.6/1kV

Code : YJV32 (copper) YJLV32 (aluminum)
Standard : IEC 60502. GB/T 12706-2002
Construction :
  1- Solid or Stranded Copper Conductor
  2- XLPE insulation (cross-linked PE).
  3- PVC Inner Sheath
  4- Steel Wire Armour
  5- PVC outer sheath
Application :
  Preferably for installation indoors. in cable ducts and in industrial plants or switching stations. under ground installation with additional protection where mechanical damage is unexpected.
Technical Data :
  Max. operating temperature 90℃
  Short circuit temperature 250℃
Construction of Cable

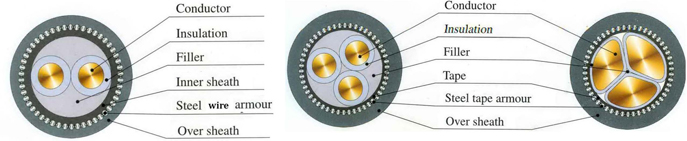

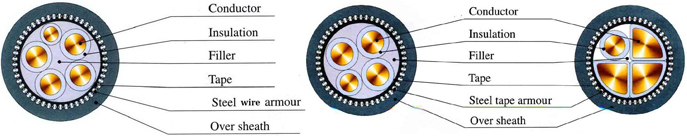

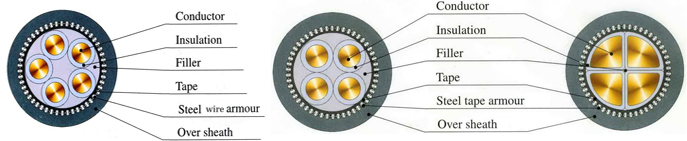

0.6/1kV 2-core steel wire Armored Power Cable	0.6/1kV 3-core steel wire Armored Power Cable
0.6/1kV 4+1-core steel wire Armored Power Cable	0.6/1kV 3+1-core steel wire Armored Power Cable
0.6/1kV 5-core steel wire Armored Power Cable	0.6/1kV 4-core steel wire Armored Power Cable

0.6/1kV, 2, 3-core XLPE Insulated Steel Wire Armored PVC Sheathed power cable YJV32,YJLV32

Normal Cross-section	OD. of Conductor	Normal Thickness of Insulation	Normal Thickness of Sheath	Approx. OD.	Approx. Weight
					kg/km
mm2	mm	mm	mm	mm	CU	AL
2×10	4.1	0.7	1.8	20.9	912.1	783.9
2×16	5.1	0.7	1.8	23	1124	920.6
2×25	6.4	0.9	1.8	26.4	1478	1156
2×35	7.6	0.9	1.8	28.7	1775	1328
2×50	5.6	1	1.9	25.4	1792	1231
2×70	6.7	1.1	2	29.4	2543	1733
2×95	8.1	1.1	2.1	32.4	3146	2022
2×120	9	1.2	2.3	35	3746	2328
2×150	11.7	1.4	2.4	42.6	5041	3292
2×185	12	1.6	2.6	44.4	5835	3646
3×10	4.1	0.7	1.8	21.7	1049	856.4
3×16	5.1	0.7	1.8	24	1323	1017
3×25	6.4	0.9	1.8	27.7	1779	1296
3×35	7.6	0.9	1.8	30.2	2174	1504
3×50	5.6	1	2	29.7	2433	1592
3×70	6.7	1.1	2.1	34.6	3429	2215
3×95	8.1	1.1	2.2	38.1	4327	2641
3×120	9	1.2	2.3	41.3	5192	3066
3×150	11.7	1.4	2.5	46.8	6704	4080
3×185	12	1.6	2.7	51	8029	4747
3×240	15.9	1.7	2.9	56.3	9995	5680
3×300	17.8	1.8	3	61.2	12031	6618

0.6/1kV, 3+1-core XLPE Insulated Steel Wire Armored PVC Sheathed power cable YJV32,YJLV32

Normal Cross-section	OD. of Conductor	Normal Thickness of Insulation	Normal Thickness of Sheath	Approx. OD.	Approx. Weight
					kg/km
mm2	mm	mm	mm	mm	CU	AL
3×10+1×6	12.6	0.7	1.8	22.4	1137	907
	10.7	0.7
3×16+1×10	14.2	0.9	1.8	25	1471	1101
	10.7	0.7
3×25+1×16	12.9	0.9	1.8	28.8	1984	1398
	9.8	0.7
3×35+1×16	13.9	0.9	1.9	31	2372	1599
	10.7	0.7
3×50+1×25	15.8	1	2	32	2807	1805
	10.7	0.9
3×70+1×35	17.6	1.1	2.1	38.5	4012	2574
	12.6	0.9
3×95+1×50	20.3	1.1	2.3	42.7	5038	3049
	14.2	1
3×120+1×70	22.7	1.2	2.4	47.7	6661	4097
	15.8	1.1
3×150+1×70	13.9	1.4	46.8	50.2	7768	4707
	10.7	1.1
3×185+1×95	15.3	1.6	51.2	56.6	9357	5468
	12.6	1.1
3×240+1×120	17.4	1.7	56.5	62.3	11592	6511
	14.2	1.2

0.6/1kV, 4-core XLPE Insulated Steel Wire Armored PVC Sheathed power cable YJV32,YJLV32

Normal Cross-section	OD. of Conductor	Normal Thickness of Insulation	Normal Thickness of Sheath	Approx. OD.	Approx. Weight
					kg/km
mm2	mm	mm	mm	mm	CU	AL
4×10	4.1	0.7	1.8	23.2	1217	960.6
4×16	5.1	0.7	1.8	25.7	1560	1153
4×25	6.4	0.9	1.8	29.9	2132	1487
4×35	7.6	0.9	1.8	32.9	2649	1755
4×50	5.6	1	2	33	3218	2097
4×70	6.7	1.1	2.1	38.7	4312	2692
4×95	8.1	1.1	2.2	42.7	5468	3221
4×120	9	1.2	2.3	47.9	7087	4252
4×150	11.7	1.4	2.5	52.4	8469	4972
4×185	12	1.6	2.7	57	10148	5771
4×240	15.9	1.7	2.9	62.9	13238	6921
4×300	17.8	1.8	3	69.1	16273	7798

0.6/1kV, 4+1-core XLPE Insulated Steel Wire Armored PVC Sheathed power cable YJV32,YJLV32

Normal Cross-section	OD. of Conductor	Normal Thickness of Insulation	Normal Thickness of Sheath	Approx. OD.	Approx. Weight
					kg/km
mm2	mm	mm	mm	mm	CU	AL
4×10+1×6	4.1	0.7	1.8	24	1317	1023
	2.8	0.7
4×16+1×10	5.1	0.7	1.8	27	1722	1251
	4.1	0.7
4×25+1×16	6.4	0.9	1.8	31.5	2370	1624
	5.1	0.7
4×35+1×16	7.6	0.9	1.9	33.9	2858	1863
	5.1	0.7
4×50+1×25	8.3	1	2.1	38.3	3815	2482
	6	0.9
4×70+1×35	9.8	1.1	2.3	42.9	4920	3036
	7	0.9
4×95+1×50	11.5	1.1	2.5	49	6858	4201
	8.3	1
4×120+1×70	12.9	1.2	2.6	53.5	8318	4914
	9.8	1.1
4×150+1×70	14.5	1.4	2.7	58.2	9867	5694
	9.8	1.1
4×185+1×95	16	1.6	2.9	63.9	11681	6606
	11.5	1.1
4×240+1×120	18.3	1.7	3.2	70.9	14589	7972
	12.9	1.2

0.6/1kV,5-core XLPE Insulated Steel Wire Armored PVC Sheathed power cable YJV32,YJLV32

Normal Cross-section	OD. of Conductor	Normal Thickness of Insulation	Normal Thickness of Sheath	Approx. OD.	Approx. Weight
					kg/km
mm2	mm	mm	mm	mm	CU	AL
5×10	4.1	1	1.8	24.7	1391	1071
5×16	5.1	1	1.8	27.6	1805	1296
5×25	6.4	1.2	1.9	32.4	2501	1704
5×35	7.6	1.2	2	36.5	3375	2258
5×50	8.3	1.4	2.2	39.4	4093	2620
5×70	9.8	1.4	2.3	44.6	5326	3244
5×95	11.5	1.6	2.5	50.8	7432	4479
5×120	12.9	1.6	2.7	55.7	8999	5265
5×150	14.5	1.8	2.8	61.5	10936	6241
5×185	16	2	3	67.2	12793	7188
5×240	18.3	2.2	3.3	74.8	16041	8703
5×300	20.5	2.4	3.5	83.2	20754	11332
