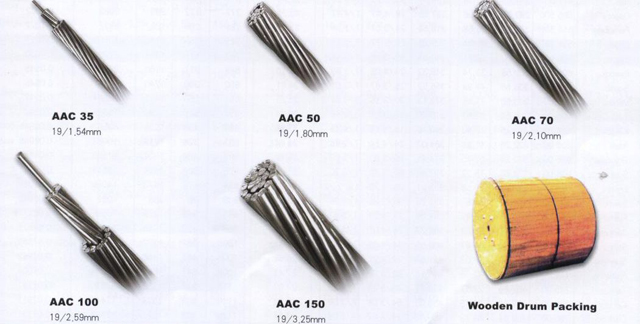

AAC British Sizes-BS215-1

Code Name	Nominal Aluminum Area	Stranding and Wire Diameter	Sectional Area	Approx. Overall Diameter	Linear mass	Calculate DC Resistance at 20℃	Calculate Breaking Load	Final Modulus of eLasticity
	mm2	mm	mm2	mm	kg/km	Ω/km	daN	hbar
Midge	22	7/2.06	23.3	6.18	64.1	1.2270	399	5900
Aphis	25	3/7.35	26.4	7.20	73.1	1.0810	411	5900
Ghat	25	7/2.21	26.8	6.60	73.4	1.0660	459	5900
Weevil	30	3/3.66	31.6	7.90	86.5	0.9082	486	5900
Mosquito	35	7/2.59	37.0	7.80	100	0.7762	603	5900
Ladybird	40	7/2.79	42.8	8.40	117	0.6689	687	5900
Ant	50	7/3.10	52.8	9.30	145	0.5419	828	5900
Fly	60	7/3.40	63.5	10.2	174	0.4505	990	5900
Bluebottle	70	7/3.66	73.7	11.0	202	0.3881	1134	5900
Earwing	75	3/3.78	78.5	11.4	215	0.3644	1194	5900
Grasshopper	80	7/3.91	84.1	11.7	230	0.3406	1278	5900
Clegg	90	7/4.17	95.6	12.5	262	0.2994	1453	5900
Wasp	100	7/4.39	106	13.2	290	0.2702	1600	5900
Beetle	100	19/2.67	106	13.4	293	0.2704	1742	5600
Bee	125	7/4.90	132	14.7	361	0.2169	1994	5900
Cricket	150	7/5.36	158	16.1	432	0.1818	2385	5900
Hornet	150	19/3.25	158	16.3	434	0.1825	2570	5600
Caterpillar	175	19/3.53	186	17.7	512	0.1547	2863	5600
Chafer	200	19/3.78	213	18.9	587	0.1349	3240	5600
Spider	225	19/3.99	237	20.0	652	0.1211	3601	5600
Cockroach	250	19/4.22	266	21.1	731	0.1083	4040	5600
Butterfly	300	19/4.65	323	23.3	888	0.0892	4875	5600
Moth	350	19/5.00	373	25.0	1027	0.0771	5637	5600
Drone	350	37/3.58	373	25.1	1029	0.0774	5745	5600
Locust	400	19/5.36	429	26.8	1179	0.0671	6473	5600
Centipede	400	37/3.78	416	26.5	1145	0.0694	6310	5600
Maybug	450	37/4.09	487	28.6	1342	0.0593	7401	5600
ScorDion	500	37/4.27	529	29.9	1460	0.5441	7998	5600
Cicada	600	37/4.65	629	32.6	1733	0.0459	9495	5600
Tarantula	750	37/5.23	797	36.6	2191	0.0363	12010	5600

AAC German Sizes-DIN48201

Cross-section Area		Stranding and Wire Diameter	Approx. OD.	Linear Mass	Calculated Breaking Load	Calculate D.C Resistance at 20℃
Nominal mm2	Actual mm2	mm	mm	kg/km	daN	Ω/km
16	15.89	7/1.71	5.10	44.1	290	1.8018
25	24.25	7/2.10	6.30	67.0	425	1.1808
35	34.36	7/2.50	7.50	94.1	585	0.8332
50	49.48	7/3.00	9.00	135	810	0.5786
50	48.36	19/1.80	9.00	133	860	0.5950
70	65.82	19/2.10	10.5	181	1150	0.4371
95	93.27	19/2.50	12.5	256	1595	0.3084
120	117.00	19/2.80	14.0	322	1910	0.2459
150	147.10	37/2.25	15.2	406	2570	0.1960
185	181.60	37/2.50	17.5	501	3105	0.1587
240	242.54	61/2.25	20.2	670	4015	0.1191
300	299.43	61/2.50	22.5	827	4850	0.0965
400	400.14	61/2.89	26.0	1105	6190	0.0722
500	499.83	61/3.23	29.1	1381	7600	0.0578
625	626.20	91/2.96	32.6	1733	9690	0.0463
800	802.10	91/3.35	36.8	2219	12055	0.0361
1000	999.71	91/3.74	41.1	2766	14845	0.0290

AAC International Sizes-IEC 61089

Code name	Area	Number of wires	Diameter		Linear Mass	Rated strength	D.C resistance
	mm2		Wire mm	Cond. mm	kg/km	kN	Ω/km
10	10	7	1.35	4.05	27.4	1.95	2.8633
16	16	7	1.71	5.12	43.8	3.04	1.7896
25	25	7	2.13	6.40	68.4	4.50	1.1453
40	40	7	2.70	8.09	109.4	6.80	0.7158
63	63	7	3.39	10.2	172.3	10.39	0.4545
100	100	19	2.59	12.9	274.8	17.00	0.2877
125	125	19	2.89	14.5	343.6	21.25	0.2302
160	160	19	3.27	16.4	439.8	26.40	0.1798
200	200	19	3.66	18.3	549.7	32.00	0.1439
250	250	19	4.09	20.5	687.1	40.00	0.1151
315	315	37	3.29	23.0	867.9	51.97	0.0916
400	400	37	3.71	26.0	1102.0	64.00	0.0721
450	450	37	3.94	27.5	1239.8	72.00	0.0641
600	600	37	4.15	29.0	1377.6	80.00	0.0577
560	560	37	4.39	30.7	1542.9	89.60	0.0515
630	630	61	3.63	32.6	1738.3	100.80	0.0458
710	710	61	3.85	34.6	1959.1	113.60	0.0407
800	800	61	4.09	36.8	2207.4	128.00	0.0361
900	900	61	4.33	39.0	2483.3	144.00	0.0321
1000	1000	61	4.57	41.1	2759.2	160.00	0.0289
1120	1120	91	3.96	43.5	3093.5	179.20	0.0258
1250	1250	91	4.18	46.0	3452.6	200.00	0.0231
1400	1400	91	4.43	48.7	3866.9	224.00	0.0207
1500	1500	91	4.58	50.4	4143.1	240.00	0.0193

AAC USA Size-ASTM B 231

Code name	Total Area		Stranding and Wire Diameter	Approx. OD	Linear Mass	Nominal Breaking Load	Maximum Resistance at 20℃
	AWG or MCM	mm2	mm	mm	kg/km	daN	Ω/km
Peachbell	6	13.29	7/1.56	4.67	37.0	249	2.1692
Rose	4	21.16	7/1.96	5.89	58.4	396	1.3624
Iris	2	33.61	7/2.47	7.42	93.2	597	0.8577
Pansy	1	42.39	7/2.78	8.33	117	732	0.6801
Poppy	1/0	53.48	7/3.12	9.36	147	873	0.5390
Aster	2/0	67.42	7/3.50	10.5	186	1100	0.4267
Phlox	3/0	85.03	7/3.93	11.8	234	1347	0.3390
Oxlip	4/0	107.23	7/4.42	13.3	296	1698	0.2688
Valerian	250	126.71	19/2.19	14.6	349	2062	0.2275
Sneezewoet	250	126.71	7/4.80	14.4	349	2007	0.2275
Laurel	266.8	135.16	19/3.01	15.1	373	2200	0.2133
Daisy	266.8	135.16	7/4.96	14.9	373	2141	0.2133
Peony	300	152.00	19/3.19	16.0	419	2403	0.1896
Tulip	336.4	170.45	19/3.38	16.9	470	2695	0.1691
daffodil	350	177.35	19/3.45	17.2	489	2804	0.1625
Canna	397.5	201.42	19/3.67	18.4	555	3184	0.1431
Goldentuft	450	228.00	19/3.91	19.6	629	3499	0.1264
Syringa	477	241.68	37/2.88	20.2	666	3849	0.1193
Cosmos	477	241.68	19/4.02	20.1	666	3708	0.1193
Hyacinth	500	253.35	37/2.95	20.7	698	4035	0.1138
Zinnia	500	253.35	19/4.12	20.6	698	3888	0.1138
Dahlia	556.5	282.00	19/4.35	21.7	777	4327	0.1022
Mlstletoe	556.5	282.00	37/3.11	21.8	777	4362	0.1022
Meadowswe	600	304.00	37/3.23	22.6	838	4703	0.0984
Orchid	636	322.25	37/3.33	23.3	888	4985	0.0894
Flag	700	354.71	61/2.72	24.5	978	5146	0.0813
Verbena	700	354.71	37/3.49	24.5	978	5487	0.0813
Nasturtium	715.5	362.58	61/2.75	24.8	1000	5874	0.0795
Violet	715.5	362.58	37/3.53	24.7	1000	5609	0.0795
Cattail	750	380.00	61/2.82	25.4	1048	5985	0.0759
Petunia	750	380.00	37/3.62	25.3	1048	5875	0.0759
Lilac	795	402.84	61/2.90	26.1	1111	6345	0.0715
Artubus	795	402.84	37/3.72	26.1	1111	6232	0.0715
Snapdragon	900	456.06	61/3.09	27.78	1257	6978	0.0632
Cockscomb	900	456.06	37/3.96	27.73	1257	6848	0.0632
Goldenrod	954	483.42	61/3.18	28.6	1333	7896	0.0596
Magnolia	954	483.42	37/4.08	28.55	1333	7258	0.0596
Camelia	1000	506.71	61/3.25	29.36	1397	7753	0.0569
Hawkweed	1000	506.71	37/4.17	29.23	1397	7608	0.0569
Larkspur	1033.5	523.68	61/3.31	29.76	1444	8012	0.0550
Bluebell	1033.5	523.68	37/4.24	29.72	1444	7863	0.0550
Marigold	1113	563.93	61/3.43	30.89	1555	8628	0.0511
Hawthom	1192.5	604.26	61/3.55	31.05	1666	9245	0.0477
Narcissus	1272	644.51	61/3.67	33.02	1777	9861	0.0477
Colunbine	1351.5	684.84	61/3.78	34.01	1888	10478	0.0421
Canation	1431	725.10	61/3.89	35.03	1999	10768	0.0398
Gladiolus	1510.5	765.35	61/4.00	35.09	2110	11365	0.0376
Coreposis	1590	805.68	61/4.1	36.51	2221	11964	0.0658
Jessamine	1750	886.71	61/4.30	38.73	2445	13168	0.0325
Cowslip	2000	1013.42	91/3.76	41.40	2791	15300	0.0285
