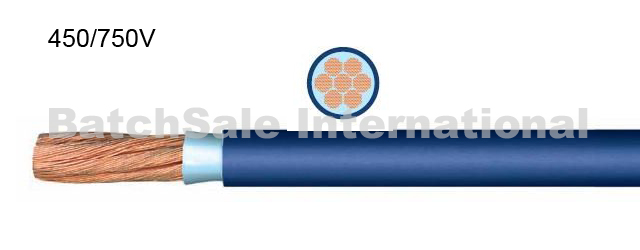

6381Y PVC Wire
6381Y PVC Wire, PVC cable, control cable, power control cable

Code: 6381Y
Standards: BS6004
Construction:
  1- Flexible Copper Conductor
  2- PVC Insulation
  3- PVC Outer Sheath
Application:
  For protected installation in equipment and lighting fitting, Also for in conduit. on and under plaster.
Technical Data :
  Max. operating temperature 70 ℃
  Short circuit temperature 160 ℃

Nominal Cross Section No. of Wires & Diameter Thickness of Insulation Thickness of Sheath Conductor DC Resistance at 20℃ Approx. Total Weight Max. Current Carrying Capacity at 30℃
No.×mm2 No.×mm mm mm Ω/km kg/km Pip A Air A
 1.5    27 × 0.25    0.9    0.8    13.3    42.0    15    24
 2.5    45 × 0.25    0.9    0.8    7.98    54.0    20    32
 4    50 × 0.30    1    0.9    4.95    77.0    25    42
 6    75 × 0.30    1.1    0.9    3.30    102    33    54
 10    73 × 0.40    1.2    1.0    1.91    160    45    73
 16    119 × 0.40    1.2    1.0    1.21    210    61    98
 25    187 × 0.40    1.4    1.1    0.78    320    83    129
 35    255 × 0.40    1.4    1.1    0.554    420    103    158
 50    374 × 0.40    1.4    1.4    0.386    590    120    198
