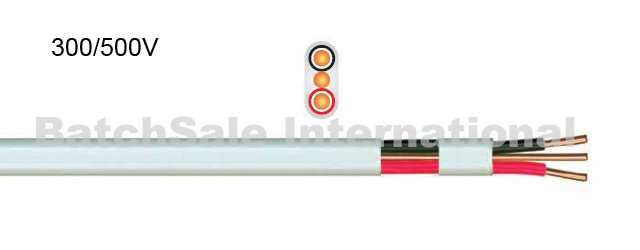

6242Y-6243Y PVC Wire
6242Y-6243Y PVC Wire, 6243Y PVC Wire, 6242Y PVC Wire, PVC cable, control cable, power control cable

Code: 6242Y-6243Y
Standards:BS6004 Table8
Construction:
1- Solid Copper Conductor
2- PVC insulation
3- PVC outer sheath
Application:
In dry. damp and wet locations as flexible connecting cables for light mechanical stresses. It is used for hand tools and house hold appliances with flat shape.
Technical Data :
Max. operating temperature 70 ℃
Short circuit temperature 160 ℃

Type Num. of Cores
and Nominal Cross Section		 Class of Conductor Diameter of Conductor Thickness of Insulation Approx. Total Weight Conductor DC Resistance at 20℃ Max. Current Carrying Capacity at 30℃
No.×mm2 mm No.×mm mm kg/km Ω/km Air A
6242Y 2×1.5+1×1 1 1.35 / 1.10 0.7 84.0 12.1/18.1 20
6242Y 2×2.5+1×1 1 1.73 / 1.10 0.8 116 7.41/18.1 27
6242Y 2×4+1×1.5 2 2.19 / 1.35 0.8 170 4.61/7.41 37
6242Y 2×6+1×2.5 2 2.68 / 1.73 0.8 240 3.08/7.41 47
6242Y 2×10+1×4 2 7×1.32 / 2.19 1.0 380 1.83/4.61 64
6242Y 2×16+1×6 2 7×1.66 / 2.68 1.0 549 1.15/3.08 85
6243Y 3×1.0+1×1 1 1.10 0.6 88.0 18.1/18.1 13.5
6243Y 3×1.5+1×1 1 1.35 / 1.10 0.7 115 12.1/18.1 17.5
6243Y 3×2.5+1×1 1 1.73 / 1.10 0.8 163 7.41/18.1 24
6243Y 3×4.0+1×1.5 2 2.19 / 1.35 0.8 239 4.61/12.1 32
6243Y 3×6+1×2.5 2 2.68 / 1.73 1.0 333 3.08/7.41 41
6243Y 3×10+1×4 2 7×1.32 / 2.19 1.0 533 1.83/4.61 57
6243Y 3×16+1×6 2 7×1.66 / 2.68 1.0 773 1.14/3.08 76
